SLV6A-FKB-CM1Q1H1BB7R3R3
LED RGB 6PLCC SMDManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More
Cree LED SLV6A-FKB-CM1Q1H1BB7R3R3 is a 6-pin PLCC surface-mount RGB LED from the SLV6A-FKB series. This discrete indicator component features independent Red, Green, and Blue emitters with dominant wavelengths of 622nm (Red), 530nm (Green), and 470nm (Blue). Typical forward voltage requirements are 2V for Red, and 3.2V for Green and Blue, with a standard test current of 20mA for each color. The component offers millicandela ratings of 915mcd (Red), 1820mcd (Green), and 458mcd (Blue). Its dimensions are 5.50mm L x 5.30mm W with a maximum height of 2.60mm, housing a 4.20mm diameter round lens with a flat top. This Cree LED component is commonly utilized in automotive lighting, signage, and general illumination applications. Supplied in Tape & Reel packaging.
Additional Information
Series: SLV6A-FKBRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 5.50mm L x 5.30mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 915mcd Red, 1820mcd Green, 458mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.2V Blue |
| Lens Color | - |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | - |
| Height (Max) | 2.60mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 622nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 4.20mm Dia |
Request a Quote
Clients Also Buy

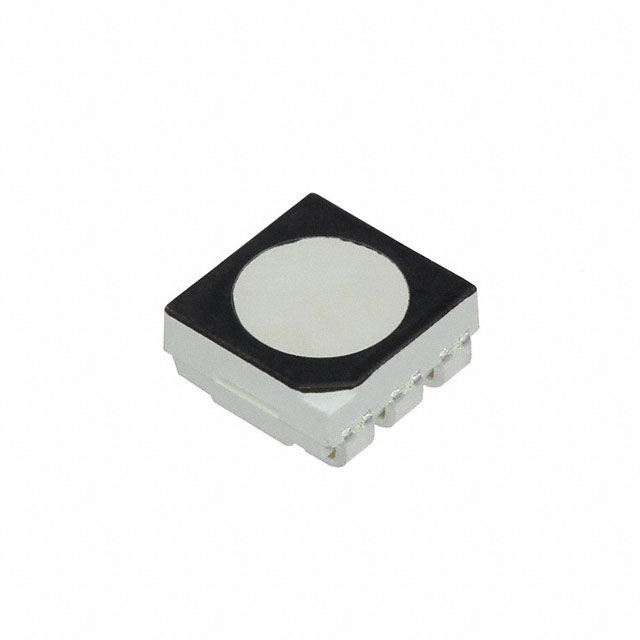

SLV6A-FKB-CK1P1G1BB7R3R3
