LP379PBL1-C0G-03
LED BLUE CLEAR T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

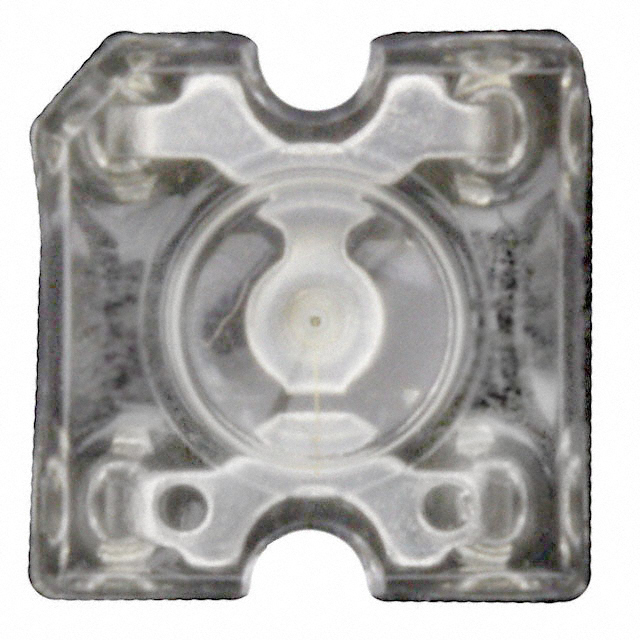

Cree LED LP379PBL1-C0G-03 is a blue, through-hole LED with a dominant wavelength of 470nm. This discrete indicator component operates at a typical forward voltage of 3.6V and a test current of 30mA, providing a clear, colorless, round lens with a flat top and a 120° viewing angle. The LED is housed in a 4-DIP (0.200", 5.08mm) package, measuring 7.60mm L x 7.60mm W with a maximum height of 7.00mm. It is supplied in tube packaging. This component is suitable for applications in industrial automation, medical devices, and consumer electronics where reliable visual indication is required.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Blue |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | Colorless |
| Current - Test | 30mA |
| Viewing Angle | 120° |
| Height (Max) | 7.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
