LP368PWN1-D0G
LED COOL WHITE CLEAR P4 T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

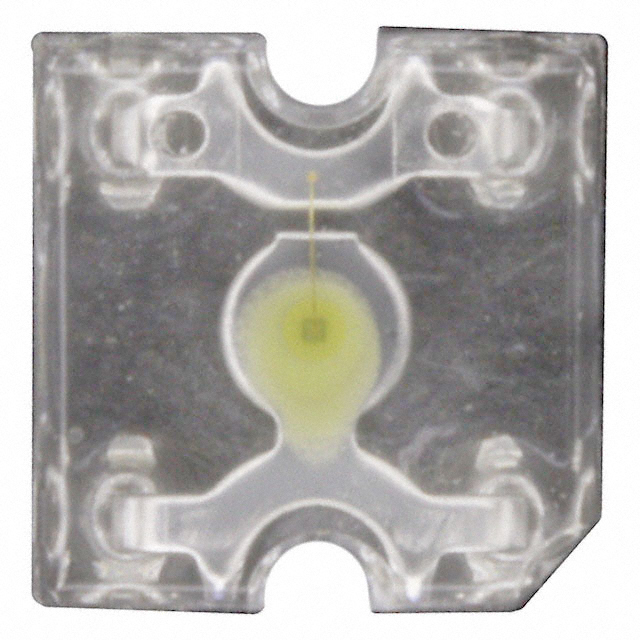

Cree LED's LP368PWN1-D0G is a through-hole mounted cool white LED designed for discrete indication. This component features a clear, colorless square lens with a flat top, measuring 7.60mm x 7.60mm. It operates with a typical forward voltage of 3.6V and a test current of 30mA, producing a millicandela rating of 400mcd. The 4-DIP (0.200", 5.08mm) package facilitates easy integration into printed circuit boards. With a wide viewing angle of 130°, this LED is suitable for applications in consumer electronics, industrial automation, and medical equipment where clear visual feedback is critical. The component is supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | White, Cool |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 400mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | Colorless |
| Current - Test | 30mA |
| Viewing Angle | 130° |
| Height (Max) | 4.85mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | P4 |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 7.60mm |
