CP42S-GKS-CE0H0694
LED GREEN CLEAR P4 T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

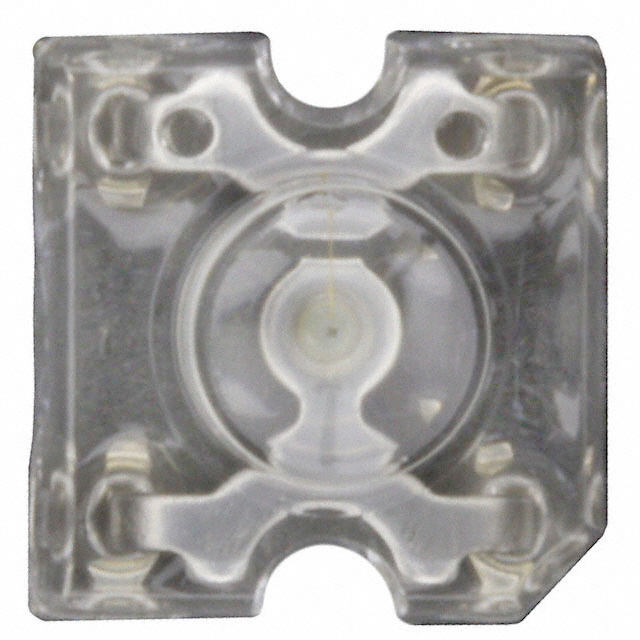

Cree LED CP42S-GKS-CE0H0694 is a through-hole mounted green LED with a dominant wavelength of 527nm. This discrete component operates at a typical forward voltage of 3.6V and is specified for a test current of 30mA. The LED features a clear, colorless round lens with a flat top, measuring 4.00mm in diameter. Its package is a 4-DIP (0.200", 5.08mm) with dimensions of 7.60mm L x 7.60mm W and a maximum height of 7.00mm. The viewing angle is 120°. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for indication purposes. It is supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Green |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | Colorless |
| Current - Test | 30mA |
| Viewing Angle | 120° |
| Height (Max) | 7.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 527nm |
| Supplier Device Package | P4 |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
