CP42B-RKS-CL0P0AA4
LED RED CLEAR P4 T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

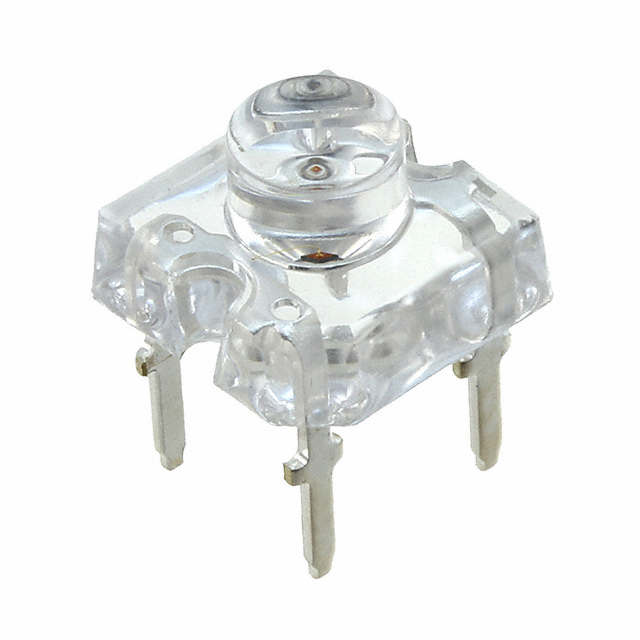

Cree LED's CP42B-RKS-CL0P0AA4 is a discrete red LED with a dominant wavelength of 624nm and a forward voltage of 2.5V at a test current of 70mA. This through-hole component features a clear, colorless lens with a flat top and a 120° viewing angle. Housed in a 4-DIP (0.200", 5.08mm) package, it is suitable for indication purposes across various industrial applications. The component's dimensions are 7.60mm L x 7.60mm W with a maximum height of 7.00mm.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Red |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Lens Color | Colorless |
| Current - Test | 70mA |
| Viewing Angle | 120° |
| Height (Max) | 7.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 624nm |
| Supplier Device Package | P4 |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
