CP41B-GFS-CN0P0674
LED GREEN CLEAR P4 T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

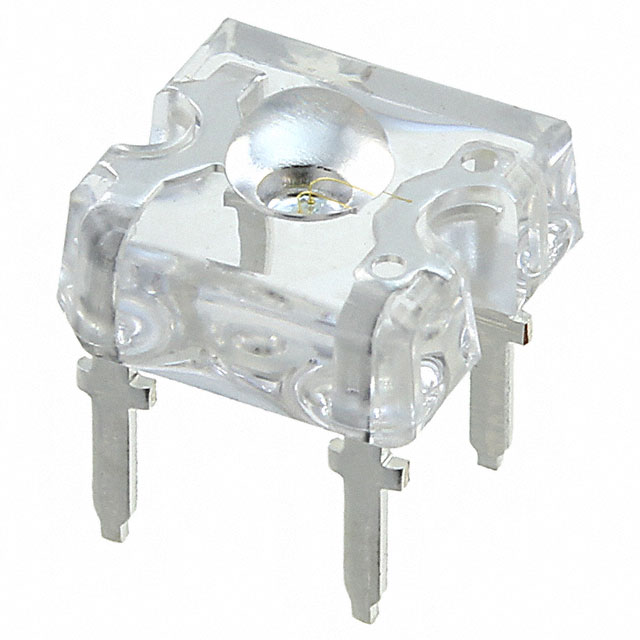

Cree LED's CP41B-GFS-CN0P0674 is a discrete green LED with a dominant wavelength of 527nm. This through-hole component features a clear, domed top lens with a 3.00mm diameter, offering a wide 70° viewing angle. Operating at a typical forward voltage of 3.6V and a test current of 30mA, it achieves a luminous intensity of 8800mcd. The 4-DIP (0.200", 5.08mm) package is supplied in tubes. This component is suitable for various indication applications across industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Green |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 8800mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | - |
| Current - Test | 30mA |
| Viewing Angle | 70° |
| Height (Max) | 5.94mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 527nm |
| Supplier Device Package | P4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
