CP41B-GFS-CM0Q0694
LED GREEN CLEAR P4 T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

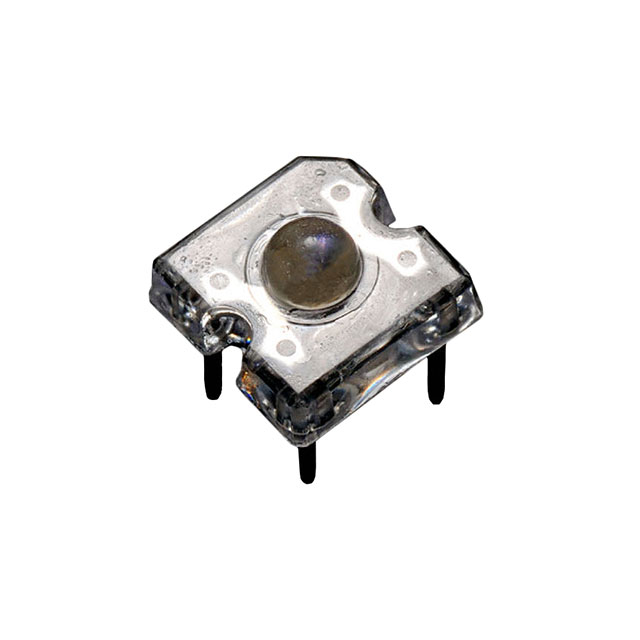

Cree LED's discrete indicator, part number CP41B-GFS-CM0Q0694, offers a vibrant green light with a dominant wavelength of 527nm. This through-hole mounted component features a clear, domed top lens with a 3.00mm diameter, providing a 70° viewing angle. Tested at 30mA, it achieves a luminous intensity of 9350mcd at a typical forward voltage of 3.6V. The P4 package, a 4-DIP with 0.200" (5.08mm) spacing, measures 7.60mm by 7.60mm with a maximum height of 5.94mm. This component is commonly utilized in industrial automation, automotive lighting, and general indication applications where reliable visual feedback is critical. The device is supplied in tubes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Green |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 9350mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | - |
| Current - Test | 30mA |
| Viewing Angle | 70° |
| Height (Max) | 5.94mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 527nm |
| Supplier Device Package | P4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
