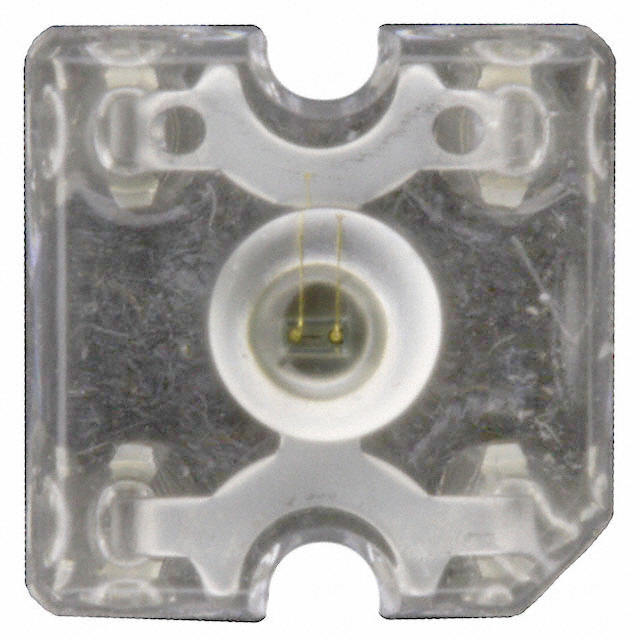

CP41B-GFS-CM0N0784
LED GREEN CLEAR P4 T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More
Cree LED's CP41B-GFS-CM0N0784 is a through-hole mounted discrete LED designed for indication applications. This component features a green light emission with a dominant wavelength of 527nm and a peak wavelength (not specified). Operating at a typical forward voltage of 3.6V, it achieves a luminous intensity of 7115mcd when driven at 30mA. The LED is housed in a 4-DIP package with a 0.200" (5.08mm) lead spacing and a clear, round, domed top lens with a 3.00mm diameter. The viewing angle is 70°. This component is typically utilized in industrial and automotive sectors. Packaged in a tube for efficient handling.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Green |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 7115mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | - |
| Current - Test | 30mA |
| Viewing Angle | 70° |
| Height (Max) | 5.94mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 527nm |
| Supplier Device Package | P4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
