CP41B-BFS-CG0H0454
LED BLUE CLEAR P4 T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

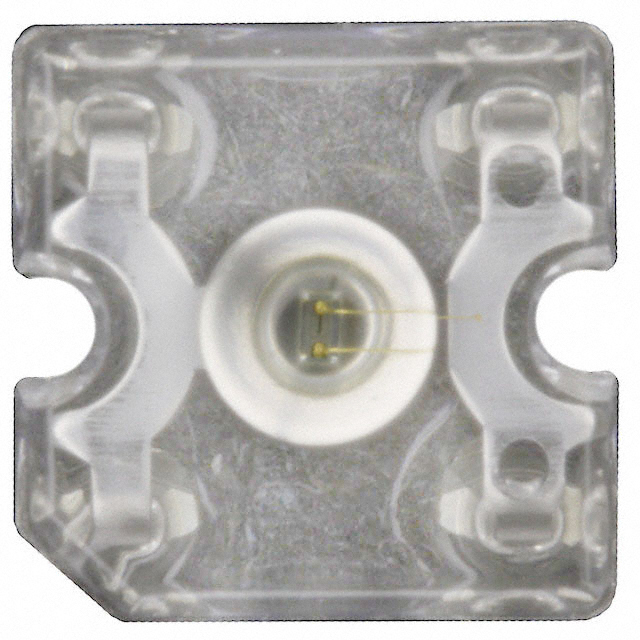

The Cree LED CP41B-BFS-CG0H0454 is a blue, through-hole, discrete LED with a dominant wavelength of 470nm. This component features a clear, domed top lens with a 3.00mm diameter and offers a typical forward voltage of 3.6V at a test current of 30mA, producing a luminous intensity of 2750mcd. The LED is housed in a 4-DIP (0.200", 5.08mm) package, measuring 7.60mm in length and width, with a maximum height of 5.94mm. Its viewing angle is 70°. This component is commonly utilized in industrial, automotive, and consumer electronics for indication purposes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Blue |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 2750mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | - |
| Current - Test | 30mA |
| Viewing Angle | 70° |
| Height (Max) | 5.94mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | P4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
