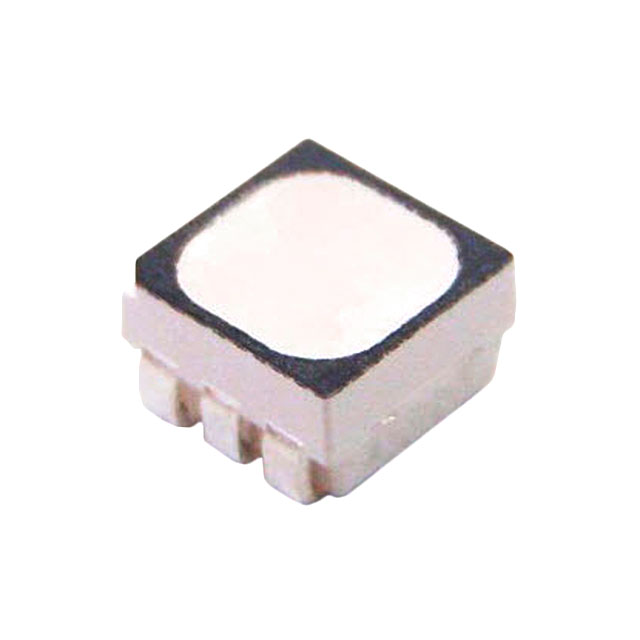

CLX6D-FKB-CN1R1H1BB7D3D3
LED RGB DIFFUSED 6PLCC SMDManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More
The Cree LED CLX6D-FKB-CN1R1H1BB7D3D3 is a diffused, RGB LED indication component. This 6-PLCC package features independent red, green, and blue emitters with dominant wavelengths of 622nm (Red), 530nm (Green), and 470nm (Blue). Typical forward voltages are 2.1V for red, 3V for green, and 3.2V for blue, all tested at 20mA. The component offers luminous intensity ratings of 1150mcd (Red), 2300mcd (Green), and 533mcd (Blue). Its compact 3.40mm L x 3.40mm W dimensions and 2.90mm maximum height are suitable for surface mounting applications. This component is utilized in automotive lighting, general indication, and backlighting solutions. Packaged on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.40mm L x 3.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1150mcd Red, 2300mcd Green, 533mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3V Green, 3.2V Blue |
| Lens Color | White |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | - |
| Height (Max) | 2.90mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 622nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | 1.00mm |
