CLV1L-FKB-CJMNQEGBB7673673
LED RGB 4PLCC SMDManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

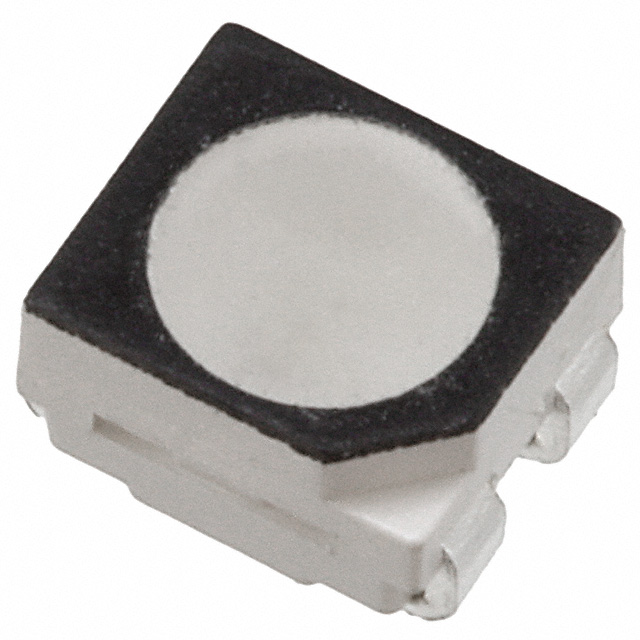

Cree LED CLV1A-FKB series RGB LED, part number CLV1L-FKB-CJMNQEGBB7673673, offers a 4-PLCC surface mount package for discrete indication. This component features a common anode configuration with distinct wavelengths of 622nm (Red), 528nm (Green), and 468nm (Blue). Typical forward voltages are 2V for Red, and 3.1V for Green and Blue, tested at 20mA (Red) and 15mA (Green/Blue) respectively. Luminous intensity ratings are 675mcd (Red), 1350mcd (Green), and 268mcd (Blue). The device measures 3.20mm L x 2.80mm W with a maximum height of 2.10mm. This LED is suitable for applications in automotive, industrial control, and consumer electronics requiring versatile color mixing and signaling. Supplied in tape and reel packaging.
Additional Information
Series: CLV1A-FKBRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 675mcd Red, 1350mcd Green, 268mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.1V Green, 3.1V Blue |
| Lens Color | - |
| Current - Test | 20mA Red, 15mA Green, 15mA Blue |
| Viewing Angle | - |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 622nm Red, 528nm Green, 468nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | - |
