CLQ6A-TKW-S1L1R1H1QBB7935DD3
LED RGBW 8PLCC SMDManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

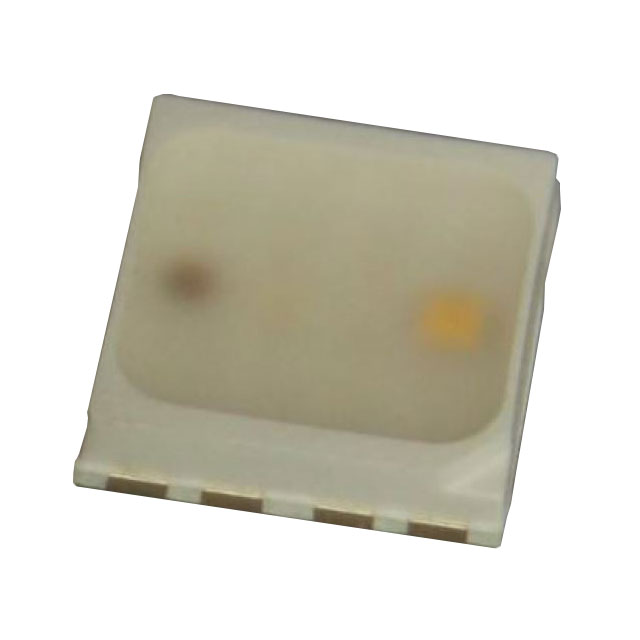

Cree LED CLQ6A-TKW series RGBW LED, part number CLQ6A-TKW-S1L1R1H1QBB7935DD3, is an 8-PLCC, surface-mount, 8-SMD, No Lead component. This discrete LED indication device features independent Red, Green, Blue, and White emitters. The dominant wavelengths are 622nm for Red, 528nm for Green, and 468nm for Blue, with a typical forward voltage of 2.1V (Red), 3V (Green), 3.1V (Blue), and 2.9V (White) at a test current of 100mA for each color. Millicandela ratings are 4500mcd (Red), 10400mcd (Green), 3000mcd (Blue), and 8200mcd (White). The package dimensions are 5.00mm L x 5.20mm W with a maximum height of 1.20mm. This component is commonly utilized in automotive lighting, general illumination, and display applications. The product is supplied on a Tape & Reel (TR).
Additional Information
Series: CLQ6A-TKWRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, No Lead |
| Color | Red, Green, Blue, White (RGBW) |
| Size / Dimension | 5.00mm L x 5.20mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4500mcd Red, 10400mcd Green, 3000mcd Blue, 8200mcd White |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3V Green, 3.1V Blue, 2.9V White |
| Lens Color | - |
| Current - Test | 100mA Red, 100mA Green, 100mA Blue, 100mA White |
| Viewing Angle | - |
| Height (Max) | 1.20mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 622nm Red, 528nm Green, 468nm Blue |
| Supplier Device Package | 8-PLCC |
| Lens Transparency | - |
| Lens Style | Oval with Flat Top |
| Lens Size | - |
