CLMVB-FKA-CFHEHLCBB7A363
LED RGB DIFFUSED 4PLCC SMDManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

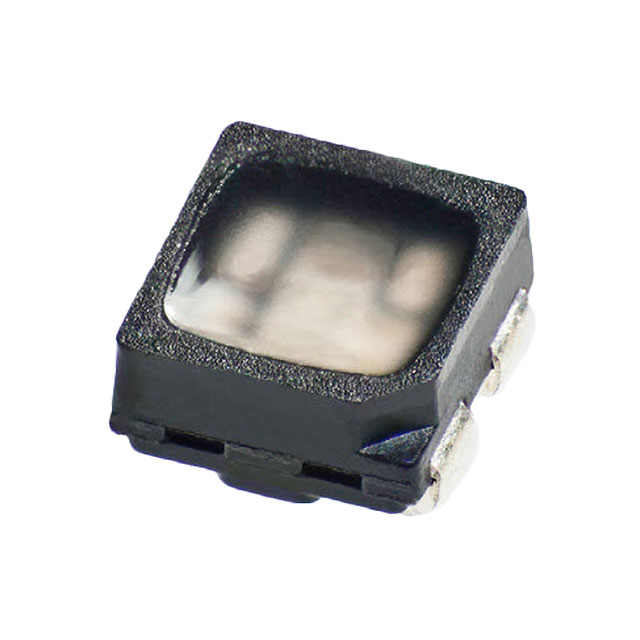

Cree LED CLMVB-FKA-CFHEHLCBB7A363 is a surface-mount RGB LED housed in a 4-PLCC package. This diffused, square lens component offers independent control of Red (622nm dominant wavelength), Green (530nm dominant wavelength), and Blue (470nm dominant wavelength) emitters. The forward voltage is typified at 2V for Red and 3V for Green and Blue, with a common anode configuration. Tested at 20mA for Red and 10mA for Green and Blue, it achieves luminous intensity ratings of 337mcd (Red), 315mcd (Green), and 98mcd (Blue). The compact 2.00mm x 2.00mm x 1.00mm footprint makes it suitable for applications in industrial automation, automotive lighting, and consumer electronics requiring versatile visual indication. This component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 2.00mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 337mcd Red, 315mcd Green, 98mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3V Green, 3V Blue |
| Lens Color | White |
| Current - Test | 20mA Red, 10mA Green, 10mA Blue |
| Viewing Angle | - |
| Height (Max) | 1.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 622nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | - |
