CLM2C-ACA-CXBA0253
LED AMBER 4PLCC SMDManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

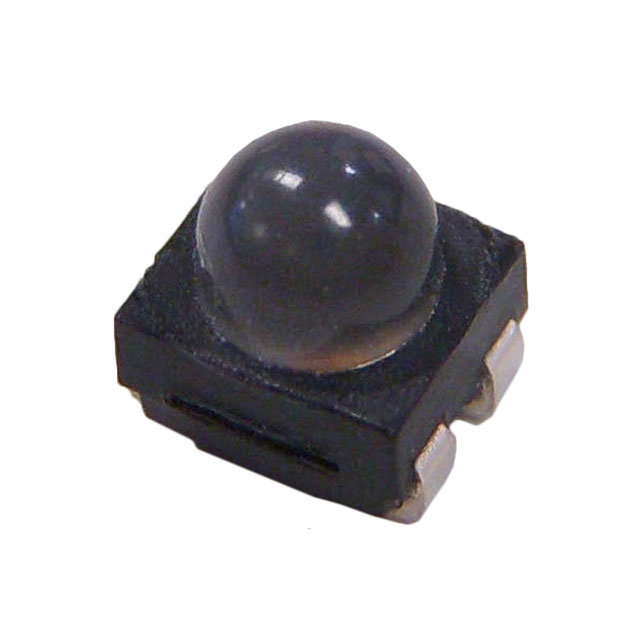

Cree LED CLM2C-ACA-CXBA0253 is an amber LED, part of the CLM2C-RCA/ACA series, housed in a 4-PLCC surface-mount package. This discrete indicator features a dominant wavelength of 590nm and a typical forward voltage of 2V. Tested at 20mA, it achieves a luminous intensity of 4670mcd. The component is supplied in tape and reel packaging. Its specifications make it suitable for applications in automotive lighting, industrial control panels, and general signage where reliable amber illumination is required. The compact 3.20mm L x 2.80mm W footprint with a 3.86mm maximum height accommodates dense board designs.
Additional Information
Series: CLM2C-RCA/ACARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Amber |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4670mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 3.86mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 2.45mm Dia |
