C5SMF-RJS-CT0W0BB2
LED RED CLEAR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

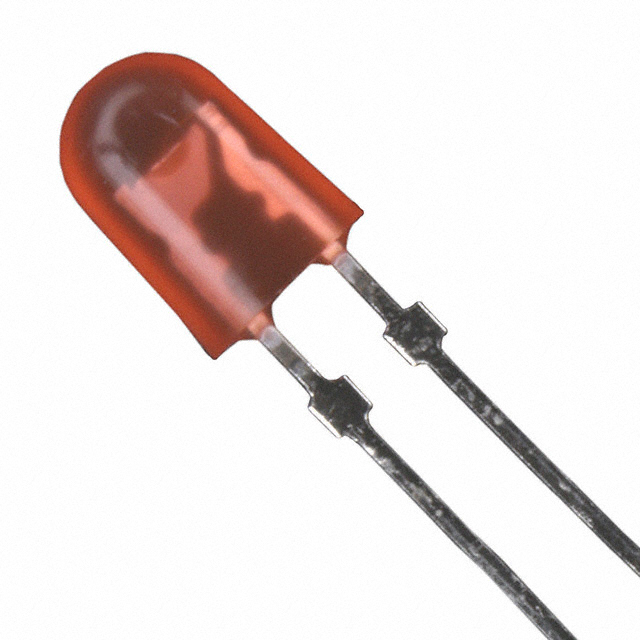

Cree LED's Screen Master® C5SMF-RJS-CT0W0BB2 is a red, through-hole mounted LED designed for indication applications. This discrete component features a 5mm round radial package with a clear, domed lens and a red lens color. It operates with a typical forward voltage of 2.1V and a test current of 20mA, achieving a millicandela rating of 2640mcd. The dominant wavelength is 621nm. This LED is supplied in cut tape packaging. Its optical characteristics make it suitable for use in automotive, industrial, and commercial lighting systems where reliable visual feedback is critical.
Additional Information
Series: Screen Master®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2640mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 100° x 40° |
| Height (Max) | 10.95mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 621nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Oval with Domed Top |
| Lens Size | 5.10mm x 3.70mm |
