C566C-GFS-CV0Z0792
LED GREEN DIFFUSED 5MM OVAL T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

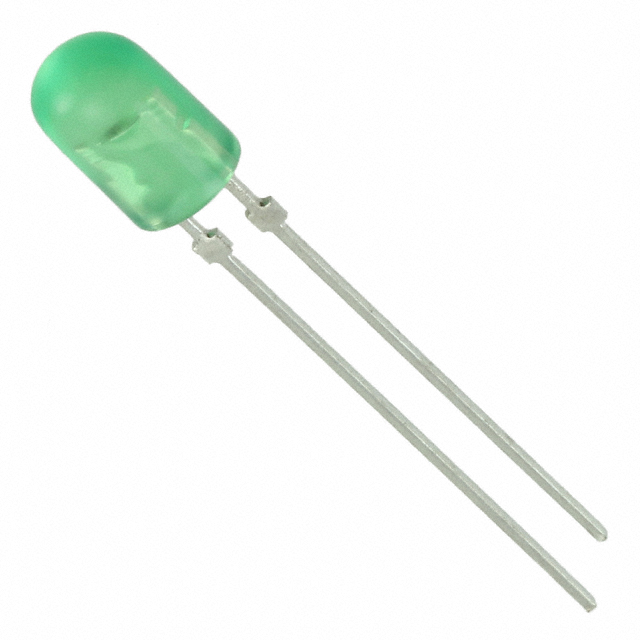

Cree LED Screen Master® C566C-GFS-CV0Z0792 is a diffused green 5mm oval through-hole LED. This discrete component offers a dominant wavelength of 527nm and a typical forward voltage of 3.4V at a 20mA test current. It features a high millicandela rating of 7065mcd, providing bright indication. The LED's lens is green, diffused, and has a domed top, with typical viewing angles of 70° and 35°. This component is suitable for applications requiring clear visual feedback, commonly found in signage and industrial equipment. It is supplied on Tape & Box (TB) packaging.
Additional Information
Series: Screen Master®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 7065mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 70°, 35° |
| Height (Max) | 11.90mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 527nm |
| Supplier Device Package | 5mm Oval |
| Lens Transparency | Diffused |
| Lens Style | Oval with Domed Top |
| Lens Size | 5.20mm x 4.60mm |
