C566C-BFS-CS0W0451
LED BLUE DIFFUSED 5MM OVAL T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

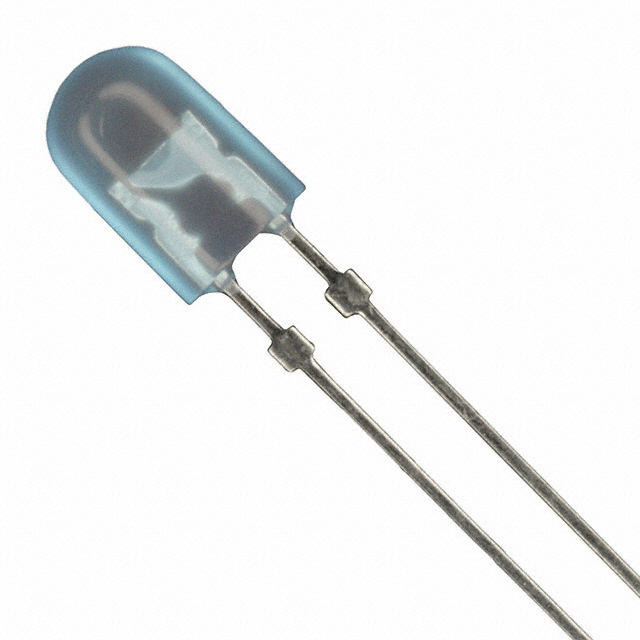

Cree LED Screen Master® C566C-BFS-CS0W0451 is a diffused blue LED, 5mm oval, through-hole component. This discrete LED operates with a typical forward voltage (Vf) of 3.4V and a test current of 20mA, producing a dominant wavelength of 470nm. The component delivers a luminous intensity of 2475mcd. Designed with an oval, domed top lens, it offers a diffused light output with viewing angles of 70° and 35°. The package style is radial, and the component is supplied in Tape & Box (TB) packaging. This LED is suitable for various indication applications across industries such as automotive, consumer electronics, and industrial equipment.
Additional Information
Series: Screen Master®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2475mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Lens Color | Blue |
| Current - Test | 20mA |
| Viewing Angle | 70°, 35° |
| Height (Max) | 11.90mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 5mm Oval |
| Lens Transparency | Diffused |
| Lens Style | Oval with Domed Top |
| Lens Size | 5.20mm x 4.60mm |
