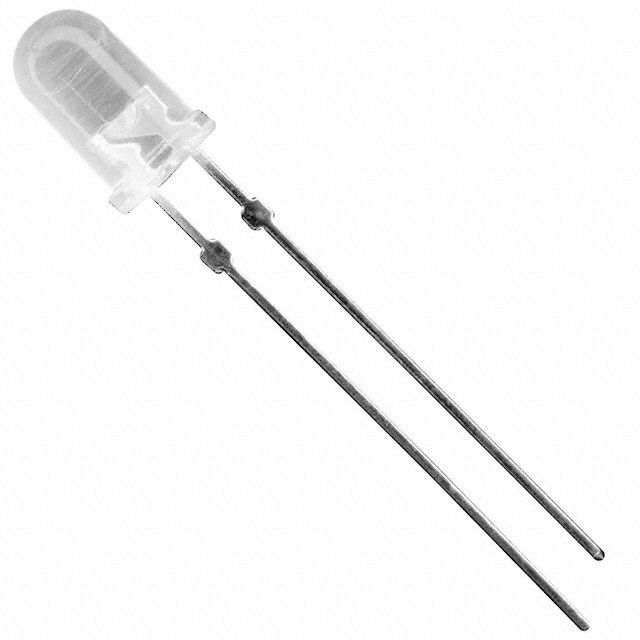

C503C-WAS-CBADA151
LED COOL WHITE CLR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More
Cree LED C503C-WAS-CBADA151 is a through-hole mounted LED component designed for indication applications. This cool white LED emits light with a dominant wavelength of 9000K and a typical forward voltage of 3.2V. The optic features a clear, colorless lens with a 5mm diameter and a domed top, providing a focused viewing angle of 15 degrees. The component is rated for 28150 millicandela at a test current of 20mA. This discrete LED is commonly utilized in automotive, industrial control, and general lighting systems where precise visual feedback is critical. It is supplied in bulk packaging with a radial package configuration.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White, Cool |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 28150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 13.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 9000K |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
