C503C-WAN-CBADA151
LED COOL WHITE CLR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

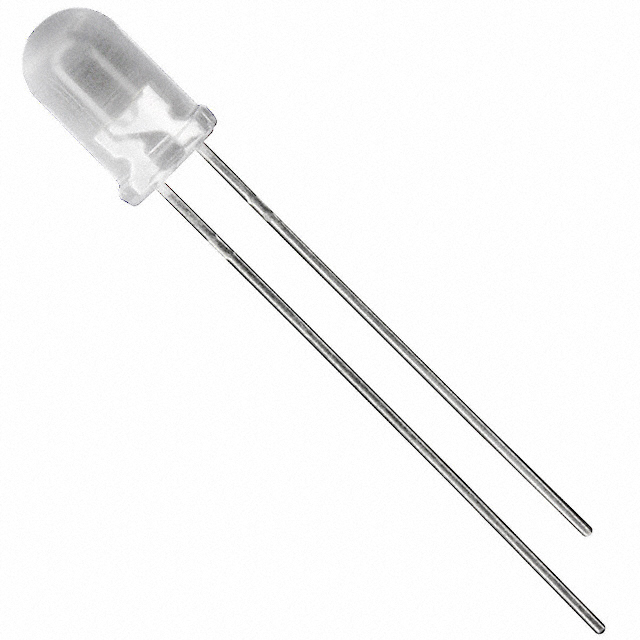

Cree LED C503C-WAN-CBADA151 is a cool white, clear lens, 5mm round through-hole LED with a 15° viewing angle. This discrete indicator component operates with a typical forward voltage of 3.2V and a test current of 20mA, delivering a high luminous intensity of 28150mcd. The cool white color temperature is specified at 9000K. Its radial package and through-hole mounting are suitable for various industrial and commercial applications requiring reliable visual feedback. The component's clear lens and domed top design optimize light output and directionality.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White, Cool |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 28150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 10.30mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 9000K |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
