C503B-WAN-CCADA152
LED COOL WHITE CLR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

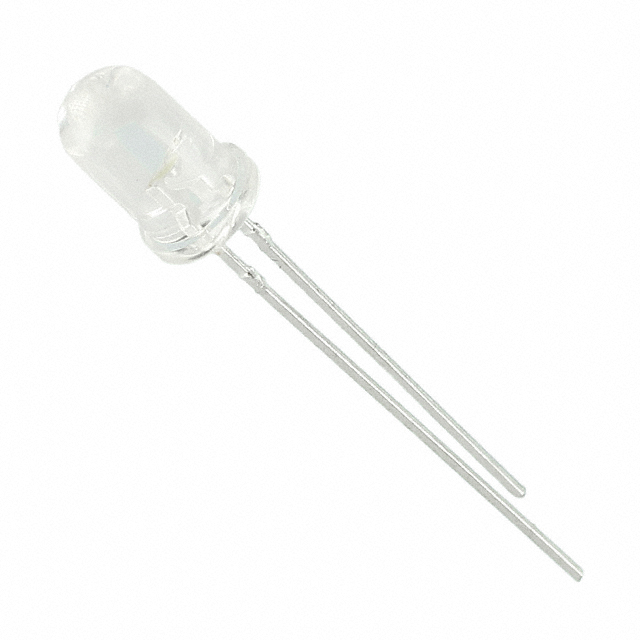

Cree LED C503B-WAN-CCADA152 is a through-hole, cool white (9000K) LED with a clear, domed 5mm lens. This discrete indicator component features a typical forward voltage of 3.2V and a test current of 20mA, achieving a millicandela rating of 31500mcd. The narrow viewing angle of 15° makes it suitable for precise directional illumination. Offered in Tape & Box (TB) packaging, the Cree LED C503B-WAN series is utilized in applications requiring high-brightness, focused light output, such as industrial control panels, automotive indicators, and general status signaling.
Additional Information
Series: C503B-WANRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Radial |
| Color | White, Cool |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 31500mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 8.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 9000K |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
