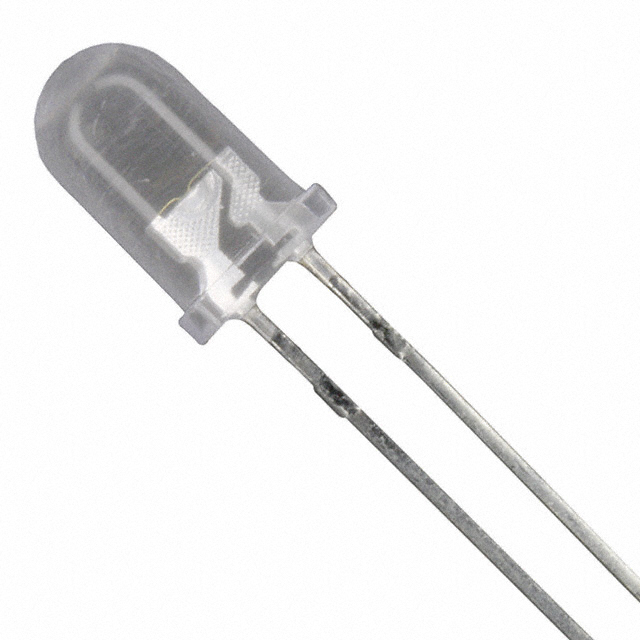

C503B-WAN-CCACB231
LED COOL WHITE CLR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More
Cree LED C503B-WAN Series Cool White LED, Part Number C503B-WAN-CCACB231. This through-hole mounted component features a 5mm clear, colorless lens with a domed top, providing a 15° viewing angle. It operates with a typical forward voltage of 3.2V and a test current of 20mA, delivering a luminous intensity of 28200mcd. The cool white color temperature is specified at 9000K. This discrete LED is suitable for indication applications across various industries, including industrial automation, consumer electronics, and medical equipment. Packaged in bulk, it utilizes a radial package.
Additional Information
Series: C503B-WANRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White, Cool |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 28200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 8.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 9000K |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
Request a Quote
Clients Also Buy
C503B-WAN-CABBB151
LED COOL WHITE CLR 5MM ROUND T/H

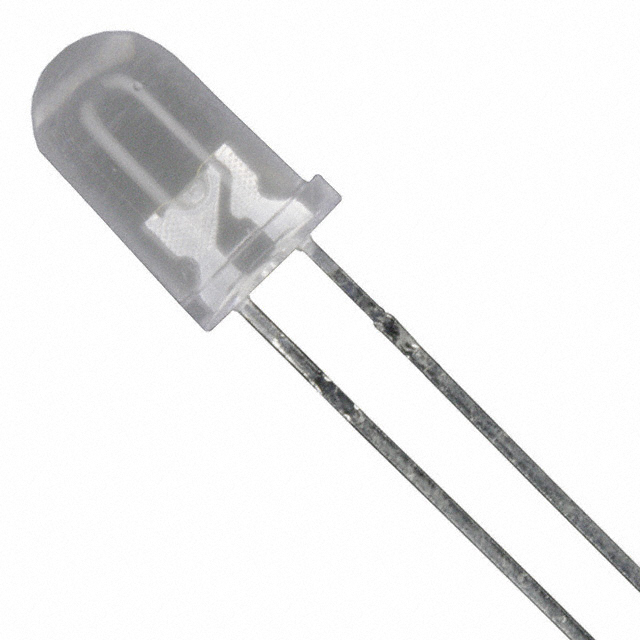

C503B-WAN-CABBB231
