C503B-WAN-CCACB151
LED COOL WHITE CLR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

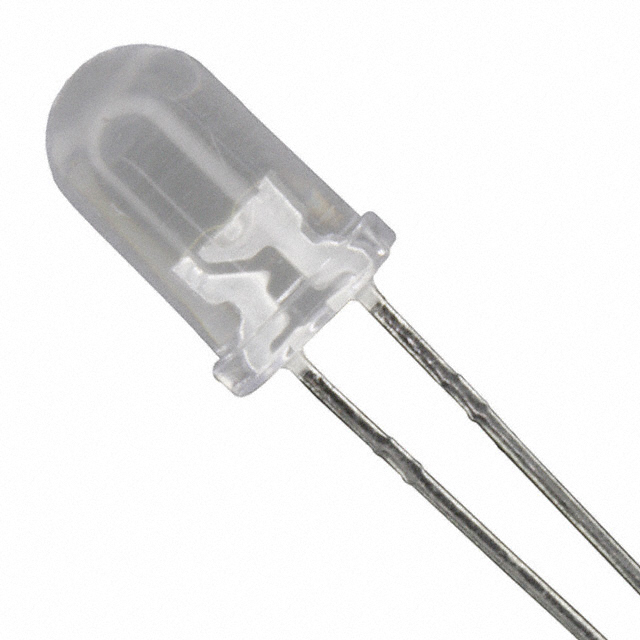

Cree LED C503B-WAN Cool White (9000K) Through-Hole LED. This discrete indicator features a clear, colorless 5mm round lens with a domed top, providing a narrow 15° viewing angle. Engineered for reliable indication, it offers a typical forward voltage of 3.2V and a test current of 20mA, producing a luminous intensity of 28200mcd. The C503B-WAN is commonly utilized in industrial automation, control systems, and general signaling applications. Packaged in bulk for efficient integration into manufacturing processes.
Additional Information
Series: C503B-WANRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White, Cool |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 28200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 8.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 9000K |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
