C503B-WAN-CBABB231
LED COOL WHITE CLR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

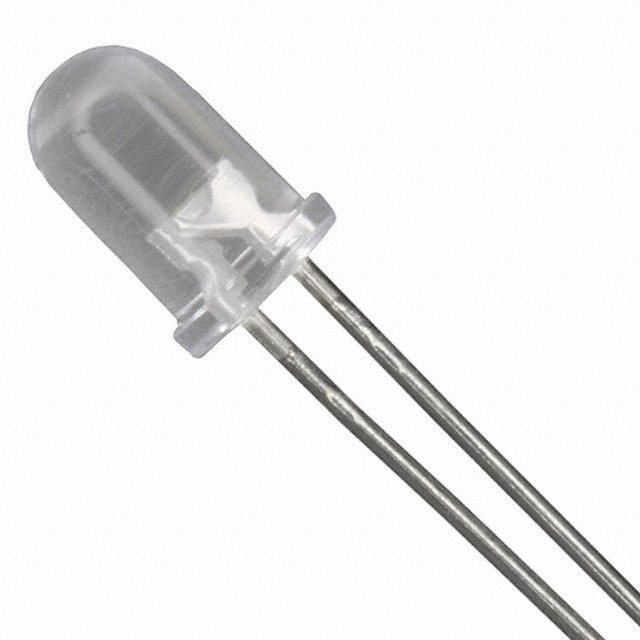

Cree LED's C503B-WAN-CBABB231 is a 5mm round, through-hole mounted LED designed for indication applications. This cool white LED, with a typical forward voltage of 3.2V and a test current of 20mA, emits a dominant wavelength of 9000K. It features a colorless, clear, domed lens providing a focused 15° viewing angle and a high luminous intensity of 20150mcd. Manufactured by Cree LED, this component is suitable for use in automotive, industrial, and consumer electronics sectors where reliable visual feedback is crucial. The C503B-WAN series component is supplied in bulk packaging.
Additional Information
Series: C503B-WANRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White, Cool |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 20150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 8.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 9000K |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
