C503B-WAN-CABBB151
LED COOL WHITE CLR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

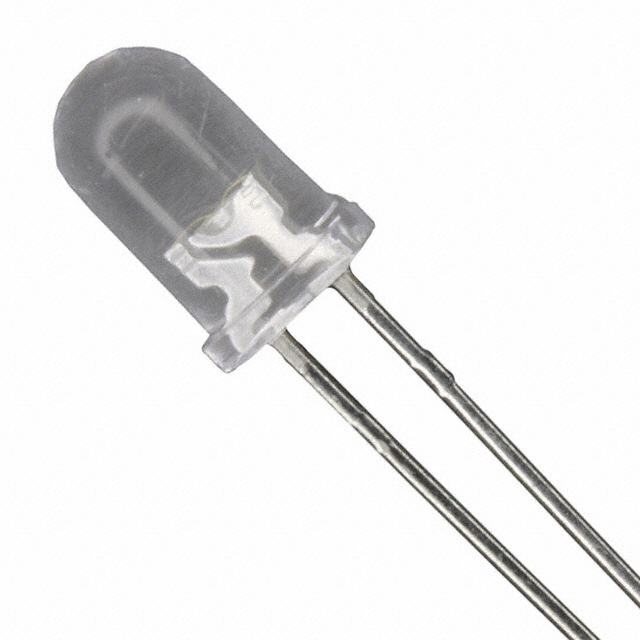

Cree LED C503B-WAN series cool white LED, part number C503B-WAN-CABBB151, offers a clear lens with a 5mm diameter, housed in a radial, through-hole package. This discrete LED indication component features a typical forward voltage of 3.2V and operates at 20mA test current, producing a luminous intensity of 18950mcd. The cool white color temperature is specified at a dominant wavelength of 9000K, with a narrow viewing angle of 15°. This component is suitable for applications in industrial automation, automotive lighting, and consumer electronics where precise directional illumination and specific color rendering are required. The component is supplied in bulk packaging.
Additional Information
Series: C503B-WANRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White, Cool |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 18950mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 8.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 9000K |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
