C503B-BAS-CY0C0461
LED BLUE CLEAR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More

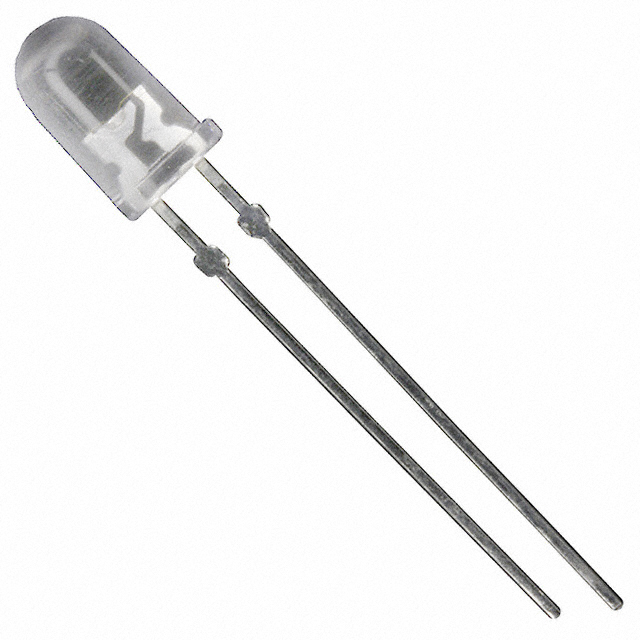

Cree LED C503B-BAS-CY0C0461 is a blue, through-hole mounted LED with a clear, domed lens measuring 5mm in diameter. This discrete component operates with a typical forward voltage (Vf) of 3.2V and a test current of 20mA, producing a luminous intensity of 19380mcd. The dominant wavelength for this blue LED is 470nm. Its compact radial package and 15° viewing angle make it suitable for various indication applications in the automotive, industrial, and consumer electronics sectors. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 19380mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 13.30mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
