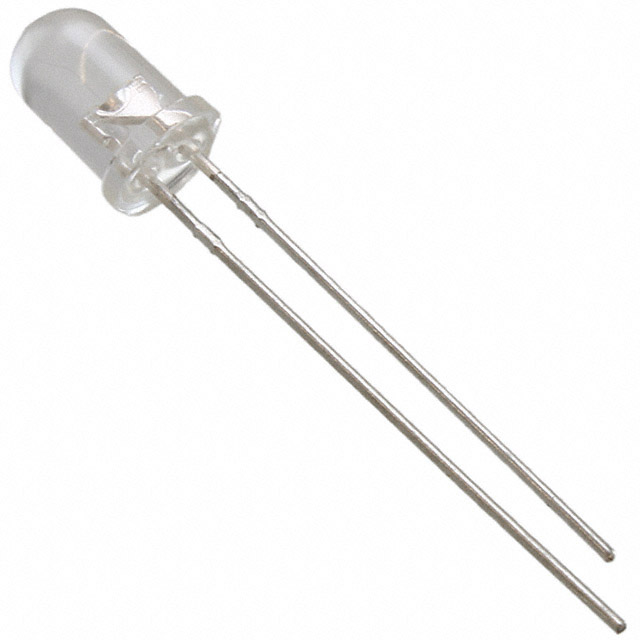

C503B-BAN-CY0Z0452
LED BLUE CLEAR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More
Cree LED C503B-BAN-CY0Z0452 is a blue, clear lens, 5mm round, through-hole mounted LED with a dominant wavelength of 470nm. This discrete LED operates with a typical forward voltage of 3.2V and a test current of 20mA, producing a luminous intensity of 8930 mcd. Featuring a domed top lens style and a 15° viewing angle, it is supplied in a radial package. This component is suitable for indication applications across various industries including automotive, industrial automation, and consumer electronics. The part is provided in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 8930mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 10.30mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
