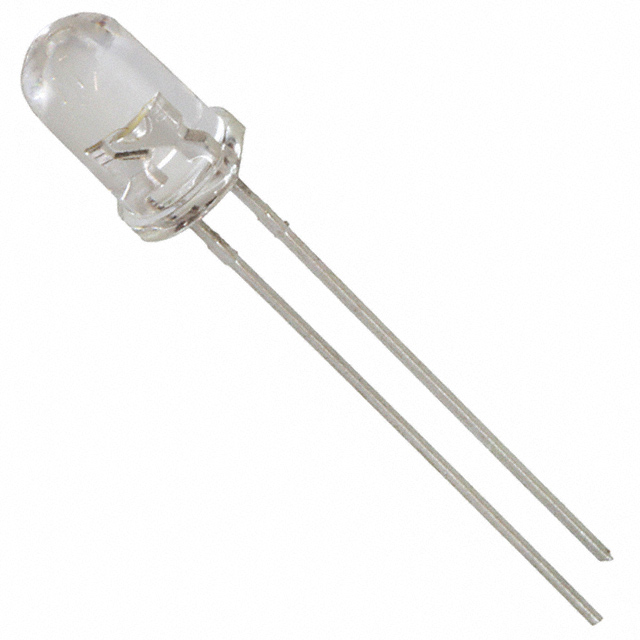

C503B-BAN-CY0Z0451
LED BLUE CLEAR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More
Cree LED's C503B-BAN-CY0Z0451 is a blue through-hole LED with a dominant wavelength of 470nm and a peak wavelength not specified. This discrete indicator features a clear, colorless, domed top radial lens with a 5mm diameter, offering a narrow 15° viewing angle. The component is rated for 20mA test current and a typical forward voltage of 3.2V, delivering a luminous intensity of 8930mcd. Its radial package and through-hole mounting are suitable for applications in industrial and automotive sectors requiring reliable visual indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 8930mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 10.30mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
