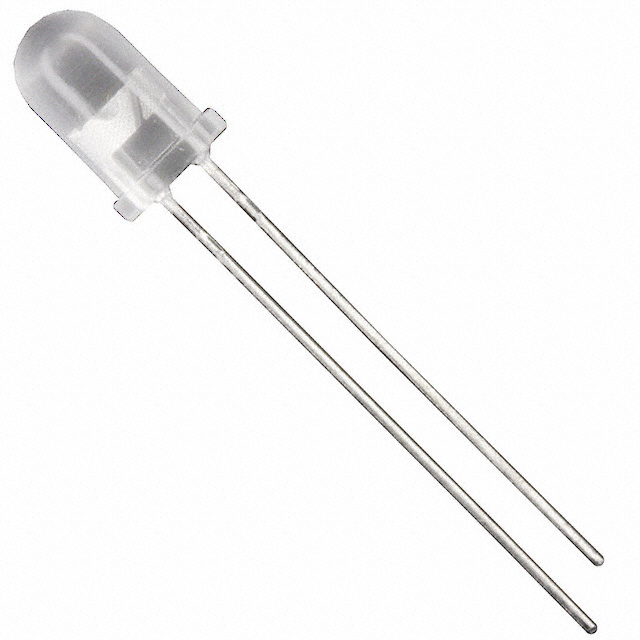

C503B-ACN-CW0X0341
LED AMBER CLEAR 5MM ROUND T/HManufacturer: Cree LED
Categories: LED Indication - Discrete
Quality Control: Learn More
Cree LED C503B-ACN-CW0X0341 is a through-hole, amber (591nm dominant wavelength) LED with a clear, colorless lens. This discrete indicator component features a 5mm round package with a domed top, providing a 30° viewing angle. The typical forward voltage is 2.1V, and it is rated for 4430mcd luminous intensity at a test current of 20mA. This component is commonly utilized in industrial control systems, automotive lighting, and general signage applications where reliable visual indication is critical. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Amber |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 4430mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 10.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 591nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
