XQERED-H2-0000-000000501

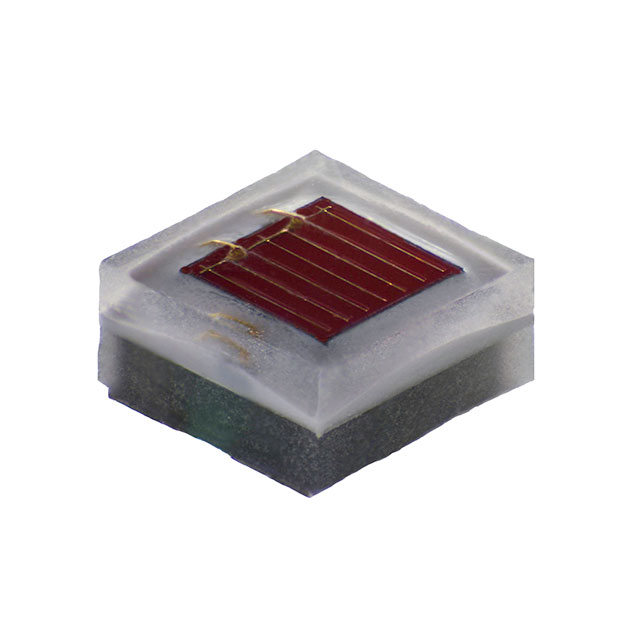

LED XLAMP XQE RED 625NM SMDManufacturer: Cree LED
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color XLamp® XQ-E Red 625nm (620nm ~ 630nm) 0606 (1616 Metric)
Additional Information
Series: XLamp® XQ-ERoHS Status: Request inventory verificationManufacturer Lead Time: 8 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0606 (1616 Metric) |
| Color | Red |
| Wavelength | 625nm (620nm ~ 630nm) |
| Size / Dimension | 0.063"" L x 0.063"" W (1.60mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 350mA |
| Viewing Angle | 125° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 77 lm/W |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 59lm (57lm ~ 62lm) |
