XQEAPA-H2-0000-000000701

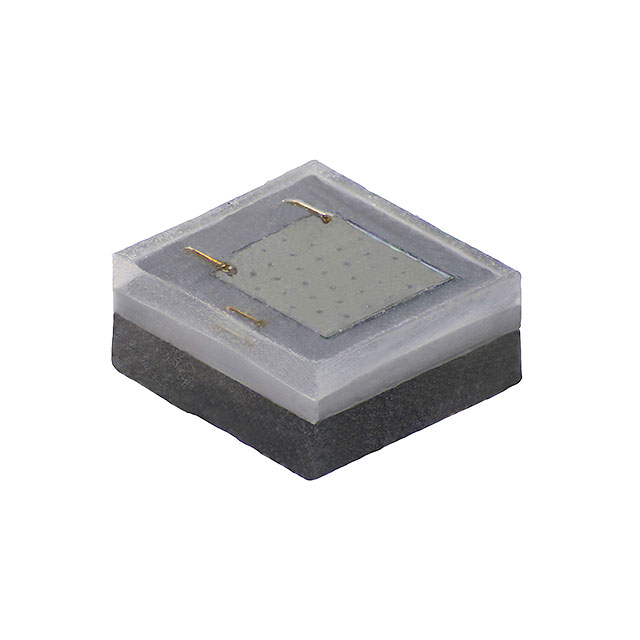

LED XLAMP XQE AMBER SMDManufacturer: Cree LED
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color XLamp® XQ-E Amber 0606 (1616 Metric)
Additional Information
Series: XLamp® XQ-ERoHS Status: Request inventory verificationManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0606 (1616 Metric) |
| Color | Amber |
| Wavelength | - |
| Size / Dimension | 0.063"" L x 0.063"" W (1.60mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 65 lm/W |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 71lm (67lm ~ 74lm) |
Request a Quote
