XQAROY-00-0000-000000603
LED XLAMP XQA BLUE 460NM SMDManufacturer: Cree LED
Categories: LED Color Lighting
Quality Control: Learn More

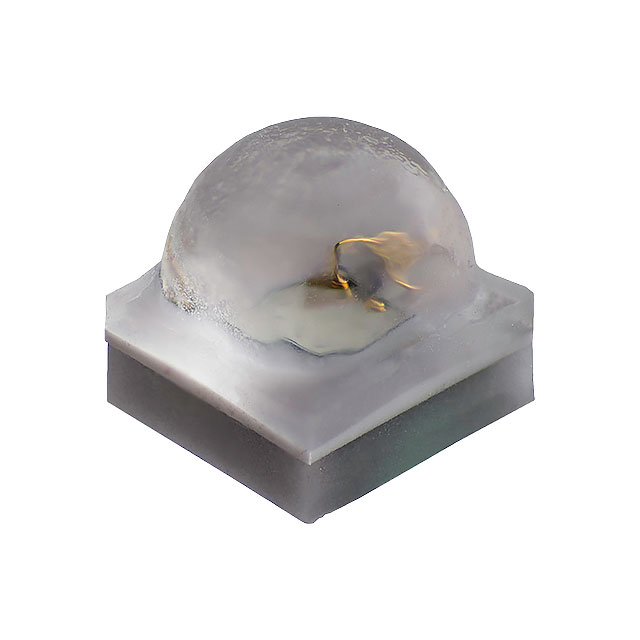

Cree LED Xlamp® XQ-A Series blue LED, part number XQAROY-00-0000-000000603, offers a typical forward voltage of 3.25V at 175mA test current, with a maximum continuous current rating of 250mA. This SMD component features a compact 0606 (1616 Metric) package with dimensions of 1.60mm x 1.60mm and a seated height of 1.73mm. The luminous flux is specified at 230mW (455nm ~ 465nm) at 25°C. With a 105° viewing angle, this LED is suitable for applications in general lighting, architectural lighting, and signage. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: Xlamp® XQ-ARoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0606 (1616 Metric) |
| Color | Blue |
| Wavelength | 460nm (455nm ~ 465nm) |
| Size / Dimension | 0.063"" L x 0.063"" W (1.60mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.25V |
| Current - Test | 175mA |
| Viewing Angle | 105° |
| Current - Max | 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.068"" (1.73mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 230mW (210mW ~ 250mW) |
