XPCROY-L1-R250-00801
LED XLAMP XPC BLUE 458NM SMDManufacturer: Cree LED
Categories: LED Color Lighting
Quality Control: Learn More

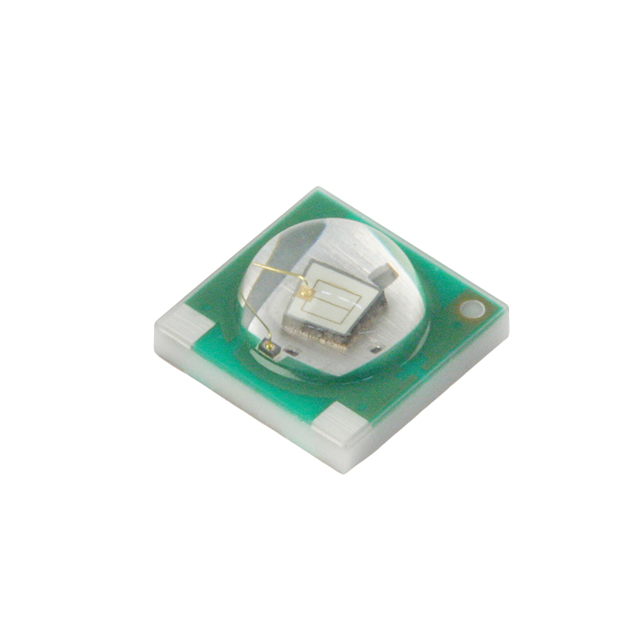

Cree LED XLamp® XP-C series blue LED, part number XPCROY-L1-R250-00801. This surface mount component features a typical forward voltage of 3.3V and a maximum continuous forward current of 500mA, with a test current of 350mA. The luminous flux is rated at 325mW at 25°C. The emission wavelength is centered at 458nm, with a range of 450nm to 465nm. The package is a 1414 (3535 Metric) SMD with dimensions of 0.136" x 0.136" (3.45mm x 3.45mm) and a seated height of 0.084" (2.13mm). The viewing angle is 125°. This component is supplied on a tape and reel. Applications include general illumination, signage, and architectural lighting.
Additional Information
Series: XLamp® XP-CRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | Blue |
| Wavelength | 458nm (450nm ~ 465nm) |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 350mA |
| Viewing Angle | 125° |
| Current - Max | 500mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.084"" (2.13mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 325mW (300mW ~ 350mW) |
