MLCROY-A1-0000-000203
LED XLAMP MLE BLUE 460NM SMDManufacturer: Cree LED
Categories: LED Color Lighting
Quality Control: Learn More
Cree LED XLamp® ML-E Series Blue LED, part number MLCROY-A1-0000-000203, offers a typical forward voltage of 3.2V at 100mA test current, producing a luminous flux of 111mW. This surface-mount device features a 4-SMD, J-Lead Exposed Pad package with dimensions of 3.50mm x 3.15mm and a seated height of 1.33mm. The LED emits at a peak wavelength of 460nm, with a spectral range of 455nm to 465nm, and has a maximum continuous current rating of 250mA. Its wide 125° viewing angle makes it suitable for applications in general illumination, architectural lighting, and automotive lighting systems. Supplied in a Tape & Reel (TR) package.
Additional Information
Series: XLamp® ML-ERoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead Exposed Pad |
| Color | Blue |
| Wavelength | 460nm (455nm ~ 465nm) |
| Size / Dimension | 0.138"" L x 0.124"" W (3.50mm x 3.15mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 100mA |
| Viewing Angle | 125° |
| Current - Max | 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.052"" (1.33mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 111mW (100mW ~ 122mW) |
Request a Quote
Clients Also Buy
MLCROY-A1-0000-000201
LED XLAMP MLE BLUE 458NM SMD
MLCROY-A1-0000-000202
LED XLAMP MLE BLUE 455NM SMD

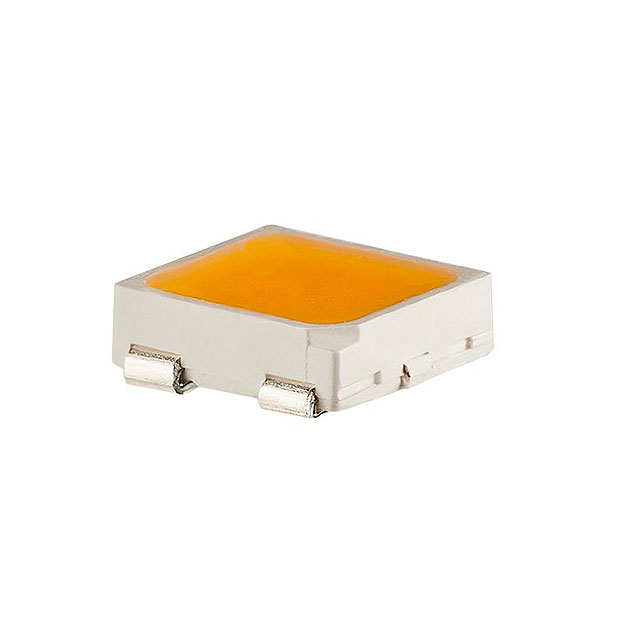

MLEAWT-A1-0000-0001E8
