MCE4CT-A2-0000-00A5AAAA1
LED XLAMP MCE RGBW SMDManufacturer: Cree LED
Categories: LED Color Lighting
Quality Control: Learn More

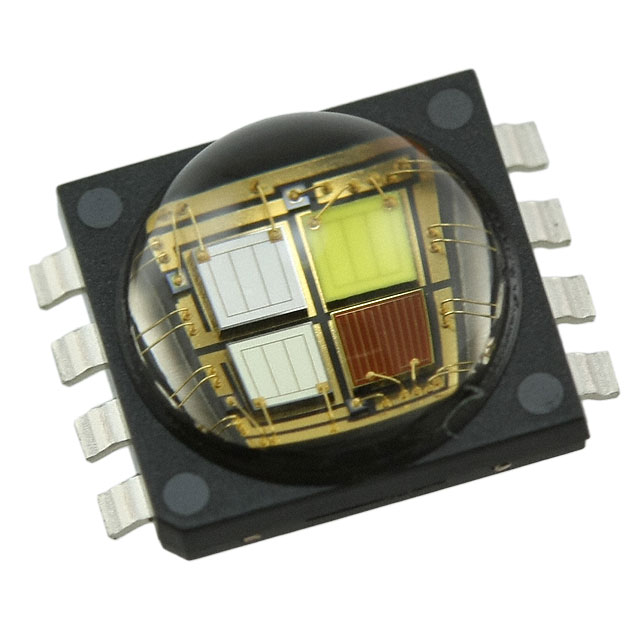

Cree LED XLamp® MC-E Series, MCE4CT-A2-0000-00A5AAAA1. This 8-SMD, Gull Wing exposed pad component delivers RGBW (Red, Green, Blue, White - Cool) lighting capabilities. Peak wavelengths include 625nm for Red, 528nm for Green, 458nm for Blue, and a correlated color temperature of 6350K for White. Maximum forward current is 700mA per color, with typical test conditions at 350mA. Forward voltage (Vf) at typical current is 2.1V (Red), 3.4V (Green), 3.2V (Blue), and 3.2V (White). Luminous flux figures at test current are 31 lumens (Red), 67 lumens (Green), 8 lumens (Blue), and 100 lumens (White - Cool). Efficacy figures at test current are 42 lm/W (Red), 56 lm/W (Green), 7 lm/W (Blue), and 89 lm/W (White - Cool). The device features a 115° viewing angle and is supplied in a Tape & Reel (TR) package. Dimensions are 0.276"" L x 0.295"" W (7.00mm x 7.50mm), with a seated height of 0.184"" (4.68mm). This component is suitable for architectural lighting, accent lighting, and general illumination applications.
Additional Information
Series: XLamp® MC-ERoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing Exposed Pad |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Wavelength | 625nm Red, 528nm Green, 458nm Blue, 6350K White |
| Size / Dimension | 0.276"" L x 0.295"" W (7.00mm x 7.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.4V Green, 3.2V Blue, 3.2V White |
| Current - Test | 350mA Red, 350mA Green, 350mA Blue, 350mA White |
| Viewing Angle | 115° |
| Current - Max | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 89 lm/W White, Cool |
| Height - Seated (Max) | 0.184"" (4.68mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 31lm Red, 67lm Green, 8lm Blue, 100lm White |
