MCE4CT-A2-0000-00A4AAAB1
LED XLAMP MCE RGBW SMDManufacturer: Cree LED
Categories: LED Color Lighting
Quality Control: Learn More

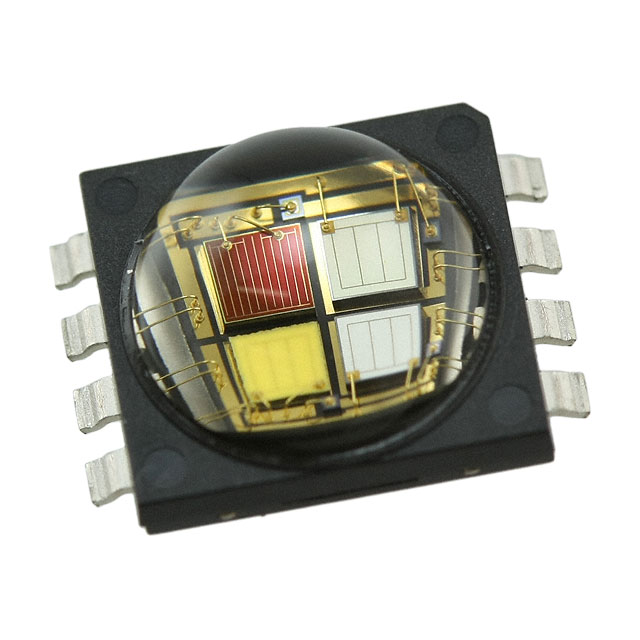

Cree LED’s XLamp® MC-E series MCE4CT-A2-0000-00A4AAAB1 is an 8-SMD, Gull Wing Exposed Pad 4-in-1 LED component. This device integrates Red (625nm), Green (528nm), Blue (458nm), and Neutral White (4000K) emitters within a single package. Each emitter is capable of a maximum continuous drive current of 700mA, with typical testing at 350mA. At 350mA and 25°C, the luminous flux is specified at 31 lumens for Red, 67 lumens for Green, 8 lumens for Blue, and 80 lumens for White. Efficacy ratings at test conditions include 42 lm/W (Red), 56 lm/W (Green), 7 lm/W (Blue), and 71 lm/W (White). Forward voltage characteristics at 350mA are approximately 2.1V (Red), 3.4V (Green), 3.2V (Blue), and 3.2V (White). The component measures 7.00mm x 7.50mm and has a seated height of 4.68mm. Its broad 115° viewing angle makes it suitable for general illumination and architectural lighting applications. This component is supplied in Tape & Reel packaging.
Additional Information
Series: XLamp® MC-ERoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing Exposed Pad |
| Color | Red, Green, Blue, White - Neutral (RGBW) |
| Wavelength | 625nm Red, 528nm Green, 458nm Blue, 4000K White |
| Size / Dimension | 0.276"" L x 0.295"" W (7.00mm x 7.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.4V Green, 3.2V Blue, 3.2V White |
| Current - Test | 350mA Red, 350mA Green, 350mA Blue, 350mA White |
| Viewing Angle | 115° |
| Current - Max | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 71 lm/W White, Neutral |
| Height - Seated (Max) | 0.184"" (4.68mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 31lm Red, 67lm Green, 8lm Blue, 80lm White |
