LMH02B-2000-40G9-00000TW
LED MOD LMH2 WHT ROUND 4000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

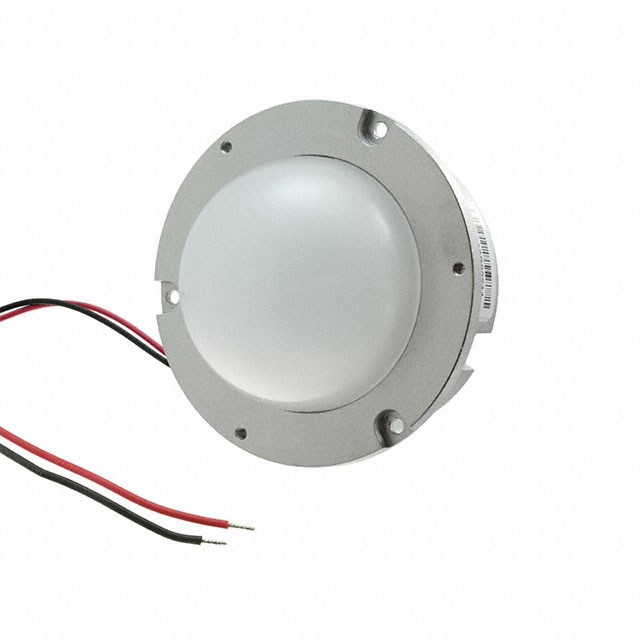

Cree LED LMH2 series LED module, part number LMH02B-2000-40G9-00000TW. This neutral white LED module features a 4000K color temperature and a high CRI of 90. Optimized for efficiency, it delivers 127 lm/W at a test current of 450mA, producing a typical luminous flux of 2000lm at 35V forward voltage. The module has a maximum drive current of 940mA and includes WhiteLight dimming capabilities. Its design incorporates a flat lens and a 68mm diameter Light Emitting Surface within an 88.2mm diameter housing, standing 30mm tall. This component is suited for applications requiring high-quality, efficient illumination, commonly found in professional lighting systems. Packaged in trays.
Additional Information
Series: LMH2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Dimming - WhiteLight |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 88.20mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 35V |
| Height | 30.00mm |
| Current - Test | 450mA |
| Viewing Angle | 82° |
| Lens Type | Flat |
| Current - Max | 940mA |
| Lumens/Watt @ Current - Test | 127 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 68.00mm Dia |
| Temperature - Test | 55°C |
| Luminous Flux @ Current/Temperature | 2000lm (Typ) |
