LMH020-4000-40G9-00000TW
LED MOD LMH2 WHT ROUND 4000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

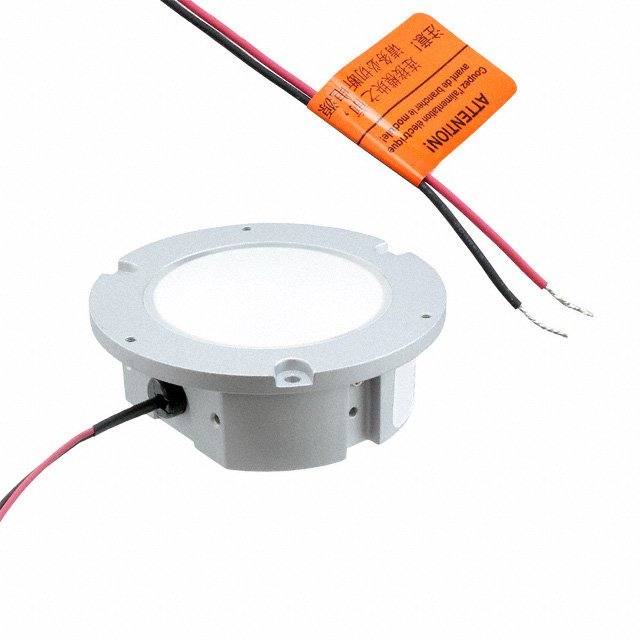

The Cree LED LMH2 TrueWhite® LED Module, part number LMH020-4000-40G9-00000TW, is a high-efficacy white lighting component. This neutral white module features a 4000K correlated color temperature and a high Color Rendering Index (CRI) of 90, ensuring accurate color reproduction. The round configuration with a flat lens and a Light Emitting Surface (LES) diameter of 68.00mm provides a broad 85° viewing angle. Operating at a test current of 900mA, it delivers a typical luminous flux of 4000 lumens with a lumen efficacy of 108 lm/W at 85°C. The module has a forward voltage of 39.7V and supports WhiteLight dimming. Its dimensions are 88.20mm in diameter and 30.00mm in height. This component is commonly utilized in applications demanding high-quality, efficient illumination, including architectural lighting, commercial spaces, and outdoor fixtures. It is supplied in trays.
Additional Information
Series: LMH2 TrueWhite®RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Dimming - WhiteLight |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 88.20mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 39.7V |
| Height | 30.00mm |
| Current - Test | 900mA |
| Viewing Angle | 85° |
| Lens Type | Flat |
| Current - Max | 900mA |
| Lumens/Watt @ Current - Test | 108 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 68.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 4000lm (3720lm ~ 4280lm) |
