LMH020-4000-30G9-00000TW
LED MOD LMH2 WM WH ROUND 3000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

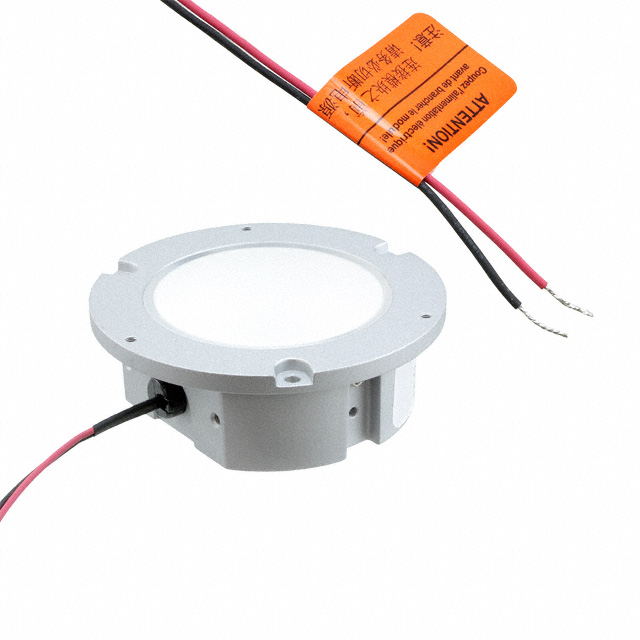

The Cree LED LMH2 TrueWhite® LED module, part number LMH020-4000-30G9-00000TW, offers a warm white illumination with a correlated color temperature (CCT) of 3000K. Designed for high-performance lighting applications, this module delivers a luminous flux of 4000 lumens at a test current of 900mA, achieving an efficacy of 108 lumens per watt. The unit features a high Color Rendering Index (CRI) of 90, ensuring accurate color representation. Its round configuration utilizes a 68mm diameter Light Emitting Surface (LES) and a flat lens. Operating at a forward voltage of 39.7V (typical) and a maximum current of 900mA, this module is suitable for demanding architectural, retail, and hospitality lighting solutions. The module is supplied in tray packaging.
Additional Information
Series: LMH2 TrueWhite®RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Dimming - WhiteLight |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 88.20mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 39.7V |
| Height | 30.00mm |
| Current - Test | 900mA |
| Viewing Angle | 85° |
| Lens Type | Flat |
| Current - Max | 900mA |
| Lumens/Watt @ Current - Test | 108 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 68.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 4000lm (3720lm ~ 4280lm) |
