LMH020-1250-30G9-00000TW
LED MOD LMH2 WM WH ROUND 3000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

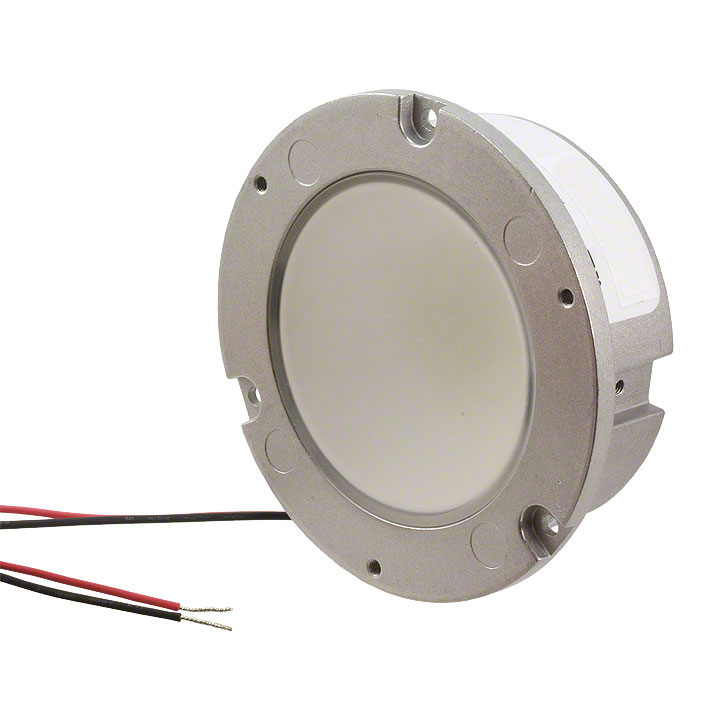

The Cree LED LMH020-1250-30G9-00000TW is a high-performance LED module from the LMH2 TrueWhite® series. This component features a warm white, 3000K color temperature with a CRI of 90, delivering excellent color rendering. The module is designed with a round, flat lens and a Light Emitting Surface (LES) diameter of 68.00mm, contributing to a broad 82° viewing angle. Operating at a typical forward voltage of 29.3V and a maximum current of 440mA, it achieves a luminous flux of 1250 lumens with a luminous efficacy of 97 lm/W at 85°C. The module supports WhiteLight dimming functionality. This component is suitable for demanding lighting applications in commercial, industrial, and architectural sectors. Supplied in tray packaging.
Additional Information
Series: LMH2 TrueWhite®RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Dimming - WhiteLight |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 88.20mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 29.3V |
| Height | 30.00mm |
| Current - Test | 440mA |
| Viewing Angle | 82° |
| Lens Type | Flat |
| Current - Max | 440mA |
| Lumens/Watt @ Current - Test | 97 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 68.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1250lm (1163lm ~ 1337lm) |
Request a Quote
Clients Also Buy

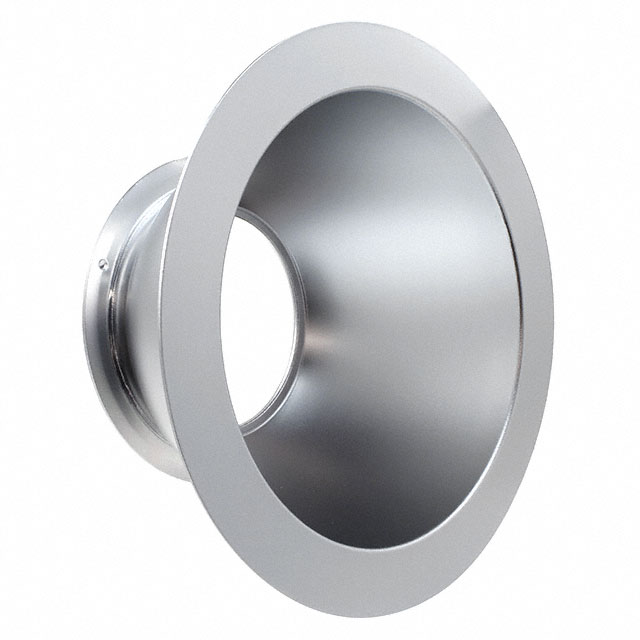

LMH020-REFL-0000-0000042
LED REFLECTOR 4"" SEMI SPECULAR

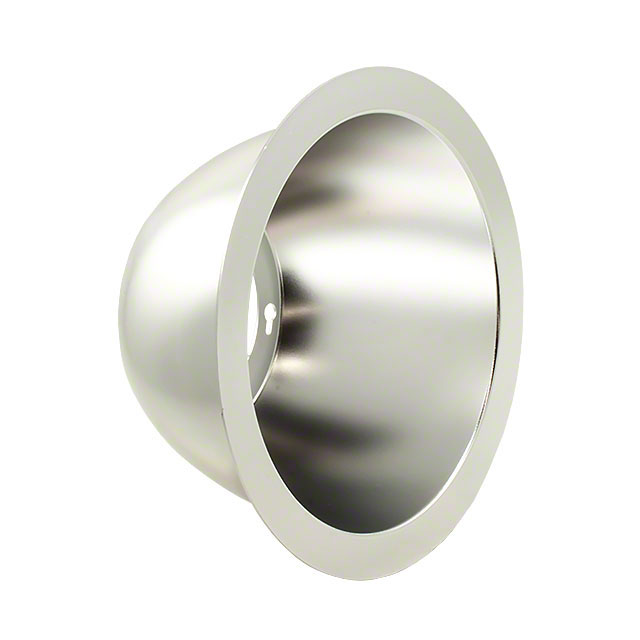

LMH020-REFL-0000-0000062
LED REFLECTOR 6"" SEMI SPECULAR

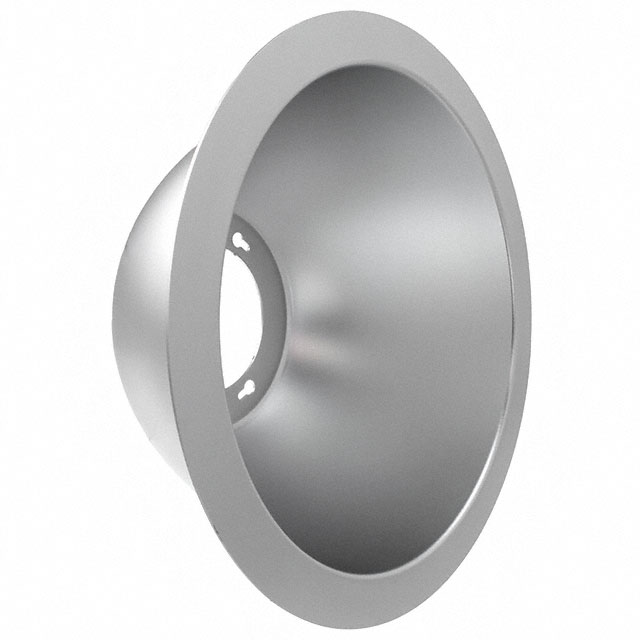

LMH020-REFL-0000-0000082
