CXB1820-0000-00PN0U0A30G
LED COB XLAMP WARM WHT SQ 3000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

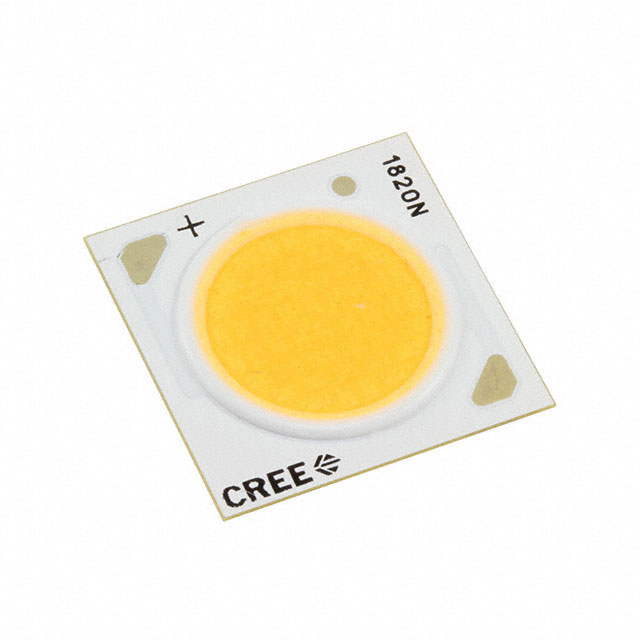

Cree LED XLamp® CXB1820 Chip On Board (COB) LED, part number CXB1820-0000-00PN0U0A30G. This warm white LED features a 3000K color temperature with a 3-step MacAdam ellipse for tight color consistency. It delivers a typical luminous flux of 2708 lumens at 550mA test current, with a luminous efficacy of 141 lm/W at 85°C. The component has a maximum forward current of 1.044A and a typical forward voltage of 35V. The Light Emitting Surface (LES) is 12.00mm in diameter, with a square configuration and a flat lens type. The viewing angle is 115°. Designed for high-intensity lighting applications, this COB LED is suitable for use in general lighting, architectural lighting, and high-bay lighting systems. Packaging is supplied in trays.
Additional Information
Series: XLamp® CXB1820RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 17.85mm L x 17.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 35V |
| Height | 1.70mm |
| Current - Test | 550mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.044A |
| Lumens/Watt @ Current - Test | 141 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 12.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 2708lm (Typ) |
