CXB1816-0000-00PN0U0A30G
LED COB XLAMP WARM WHT SQ 3000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

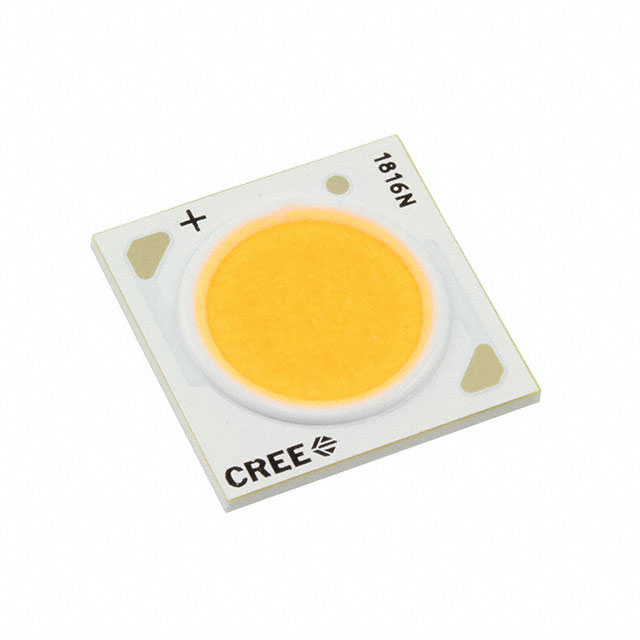

Cree LED XLamp® CXB1816 Chip On Board (COB) LED, part number CXB1816-0000-00PN0U0A30G, offers a warm white illumination with a correlated color temperature (CCT) of 3000K, specified within a 3-step MacAdam ellipse. This component features a square light-emitting surface (LES) with a 12.00mm diameter and a 90 CRI for accurate color rendition. Operating at a maximum current of 900mA, with a typical forward voltage of 35V, this LED delivers 2124 lumens at 450mA and 85°C. Its design provides a 135 lm/W efficacy at the test current. The flat lens type and 115° viewing angle are suitable for various lighting applications, including architectural, retail, and industrial environments. The module measures 17.85mm x 17.85mm with a height of 1.70mm and is supplied in a tray.
Additional Information
Series: XLamp® CXB1816RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 17.85mm L x 17.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 35V |
| Height | 1.70mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 900mA |
| Lumens/Watt @ Current - Test | 135 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 12.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 2124lm (Typ) |
