CXB1512-0000-00PF0U0A30G
LED COB XLAMP WARM WHT SQ 3000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

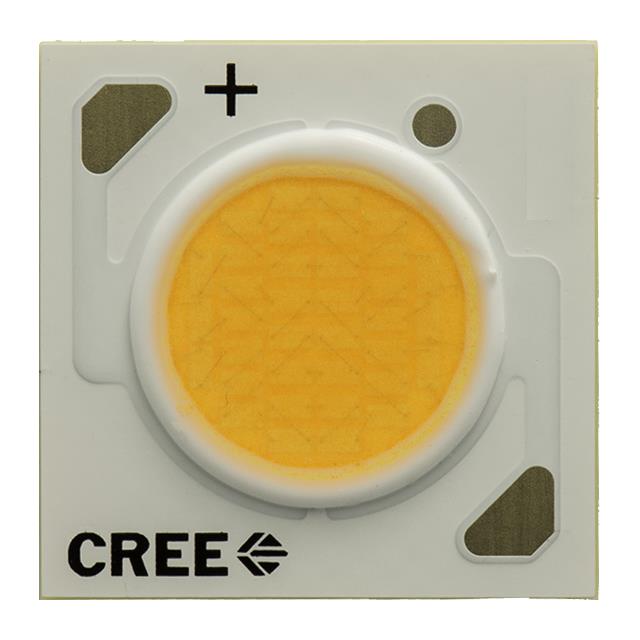

Cree LED XLamp® CXB1512 Series Chip On Board (COB) LED, part number CXB1512-0000-00PF0U0A30G. This warm white LED features a 3000K CCT with a 3-step MacAdam ellipse for tight color consistency. It offers a high CRI of 90, delivering excellent color rendering critical for applications demanding accurate color reproduction. The square light-emitting surface (LES) measures 8.90mm in diameter. Maximum drive current is 1.2A, with typical performance at 700mA yielding 132 lm/W and 1659 lumens at 85°C. The forward voltage is typically 18V. This component is suitable for general lighting, architectural lighting, and task lighting applications. The dimensions are 15.85mm x 15.85mm with a height of 1.70mm. Packaging is provided in trays. Viewing angle is 115°.
Additional Information
Series: XLamp® CXB1512RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 18V |
| Height | 1.70mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.2A |
| Lumens/Watt @ Current - Test | 132 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 8.90mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1659lm (Typ) |
