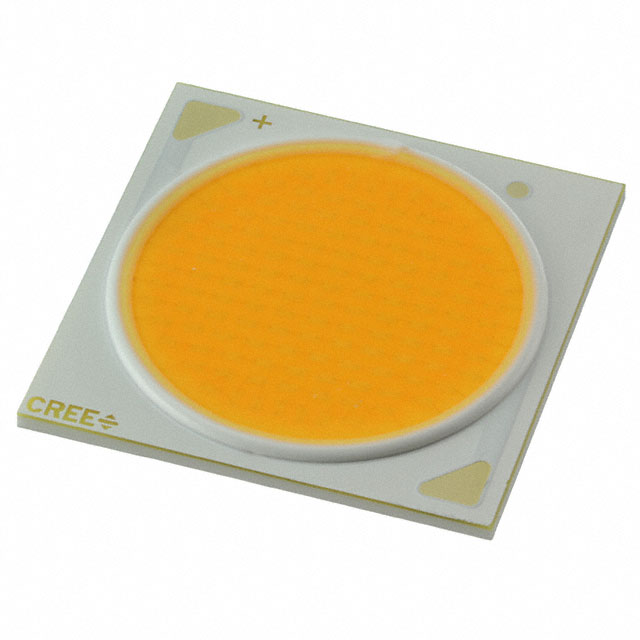

CXA3590-0000-000R0HCB57F
LED COB XLAMP COOL WHT SQU 5700KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The Cree LED XLamp® CXA3590 is a high-output COB LED engineered for demanding illumination applications. This component delivers 11500 lumens at a test current of 1.2A and 85°C, with a typical forward voltage of 77V. Featuring a cool white color temperature of 5700K with a 4-step MacAdam ellipse, it offers excellent color consistency and an 80 CRI for accurate color reproduction. The square light-emitting surface (LES) measures 30.00mm in diameter, contributing to its 115° viewing angle and 124 lm/W efficacy at the test current. Designed for efficient thermal management, the CXA3590 has a maximum current rating of 1.8A and a height of 1.70mm, with overall dimensions of 34.85mm x 34.85mm. This component is commonly utilized in architectural lighting, industrial lighting, and high-bay lighting solutions. The Cree LED CXA3590-0000-000R0HCB57F is supplied in trays.
Additional Information
Series: XLamp® CXA3590RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 34.85mm L x 34.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 77V |
| Height | 1.70mm |
| Current - Test | 1.2A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.8A |
| Lumens/Watt @ Current - Test | 124 lm/W |
| CCT (K) | 5700K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 30.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 11500lm (11000lm ~ 12000lm) |
