CXA3590-0000-000R00CD50F
LED COB XLAMP COOL WHT SQU 5000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

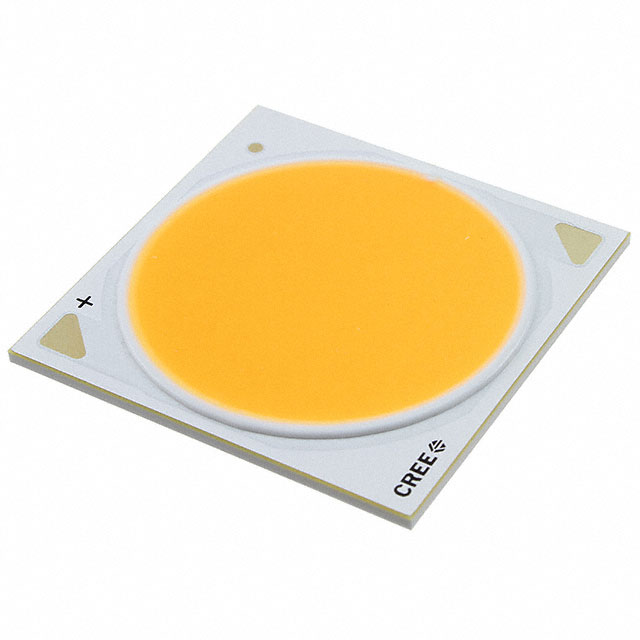

Cree LED XLamp® CXA3590 series Cool White LED COB, part number CXA3590-0000-000R00CD50F. This high-power LED array features a 30.00mm diameter Light Emitting Surface (LES) and a square emission pattern. Operating with a typical forward voltage of 77V and a maximum current of 1.8A, it achieves a luminous flux of 12500 lumens at a test current of 1.2A and 85°C, with a lumen efficacy of 135 lm/W. The color temperature is 5000K, described as Cool White, and it adheres to a 4-Step MacAdam Ellipse for tight color consistency. The Color Rendering Index (CRI) is 70. This component is suitable for applications in general lighting, architectural lighting, and industrial lighting. The module dimensions are 34.85mm x 34.85mm with a height of 1.70mm. It is supplied in tray packaging. The viewing angle is 115°.
Additional Information
Series: XLamp® CXA3590RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 34.85mm L x 34.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 77V |
| Height | 1.70mm |
| Current - Test | 1.2A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.8A |
| Lumens/Watt @ Current - Test | 135 lm/W |
| CCT (K) | 5000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 30.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 12500lm (12000lm ~ 13000lm) |
