CXA3590-0000-000N0HBD0E2
LED COB XLAMP COOL WHT SQ 5700KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

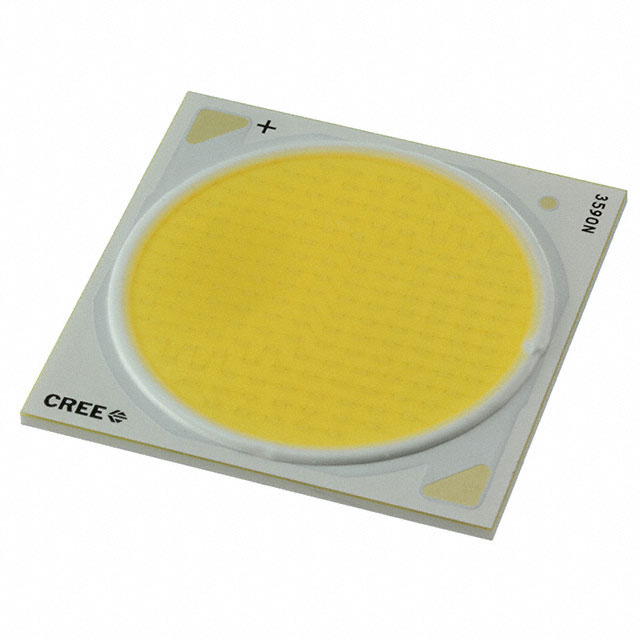

Cree LED XLamp® CXA3590 Series Cool White LED module. This Chip On Board (COB) component features a 5700K Correlated Color Temperature (CCT) with a minimum 80 CRI, delivering 10500 lumens at a typical 36V forward voltage and 2.4A test current. Optimized for high-power lighting applications, it exhibits a luminous efficacy of 122 lm/W at 85°C test temperature. The CXA3590 offers a 30.00mm diameter Light Emitting Surface (LES) within a 34.85mm x 34.85mm square footprint, a height of 1.70mm, and a 115° viewing angle with a flat lens. Maximum drive current is rated at 3.6A. This component is commonly utilized in architectural lighting, industrial lighting, and high-bay lighting solutions. Supplied in trays.
Additional Information
Series: XLamp® CXA3590RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 34.85mm L x 34.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36V |
| Height | 1.70mm |
| Current - Test | 2.4A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 3.6A |
| Lumens/Watt @ Current - Test | 122 lm/W |
| CCT (K) | 5700K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 30.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 10500lm (10000lm ~ 11000lm) |
