CXA2530-0000-000N00U440F
LED COB XLAMP NEUT WHT SQU 4000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

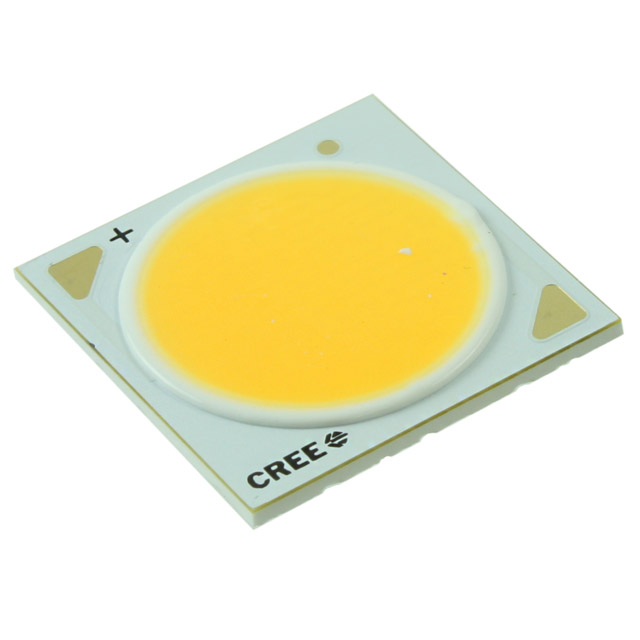

The Cree LED XLamp® CXA2530 is a neutral white Chip On Board (COB) LED designed for high-performance lighting applications. This component, identified by part number CXA2530-0000-000N00U440F, features a square light-emitting surface (LES) with a diameter of 19.00mm. It operates with a typical forward voltage of 37V and a maximum current of 1.6A, delivering a luminous flux of 4093 lumens at 800mA test current and 85°C. The efficacy is rated at 138 lm/W. The color temperature is 4000K, specified within a 4-step MacAdam ellipse, and it offers a CRI of 70. This COB LED is suitable for use in architectural lighting, commercial downlights, and industrial fixtures. The component is supplied in a tray package and has a viewing angle of 115°.
Additional Information
Series: XLamp® CXA2530RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 23.85mm L x 23.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 37V |
| Height | 1.70mm |
| Current - Test | 800mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.6A |
| Lumens/Watt @ Current - Test | 138 lm/W |
| CCT (K) | 4000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 19.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 4093lm (3955lm ~ 4230lm) |
