CXA2520-0000-000N00R235G
LED COB XLAMP WARM WHT SQU 3500KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

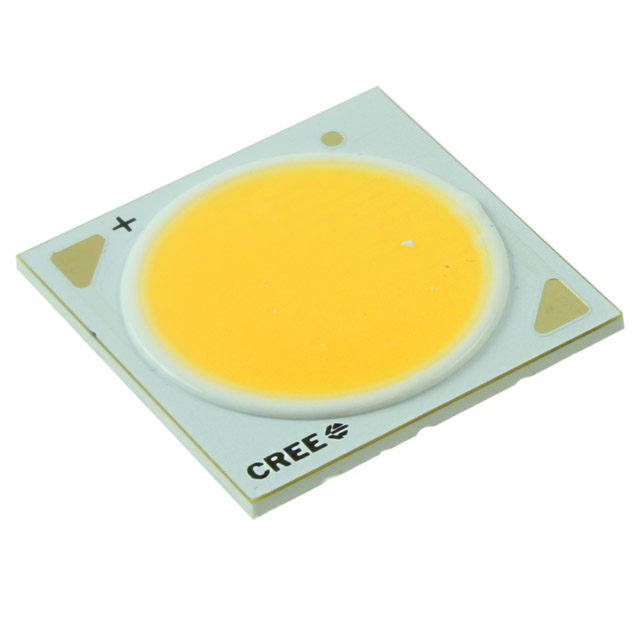

Cree LED XLamp® CXA2520 Warm White Square COB LED, part number CXA2520-0000-000N00R235G. This Chip On Board (COB) lighting component features a 19.00mm diameter Light Emitting Surface (LES) and a 115° viewing angle. It operates with a typical forward voltage of 36V and a maximum current of 1.25A, delivering 2510 lumens at a test current of 550mA and 85°C. The luminous efficacy at test conditions is 127 lm/W. The color temperature is 3500K, specified within a 3-step MacAdam ellipse, providing a high Color Rendering Index (CRI) of 80 for accurate color rendition. Its dimensions are 23.85mm x 23.85mm with a height of 1.70mm. This component is commonly utilized in general lighting, architectural lighting, and retail display applications. Supplied in a tray package.
Additional Information
Series: XLamp® CXA2520RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 23.85mm L x 23.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36V |
| Height | 1.70mm |
| Current - Test | 550mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.25A |
| Lumens/Watt @ Current - Test | 127 lm/W |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 19.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 2510lm (2420lm ~ 2600lm) |
