CXA2011-0000-000P00H00E7
LED COB XLAMP WARM WHT SQ 3000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The Cree LED XLamp® CXA2011 is a Chip On Board (COB) LED component designed for high-performance illumination applications. This warm white LED, with a correlated color temperature (CCT) of 3000K and a Color Rendering Index (CRI) of 80, delivers a luminous flux of 970 lumens at a test current of 270mA, achieving 90 lumens per watt. Its square configuration and flat lens type contribute to a uniform 120° viewing angle. The device operates with a typical forward voltage of 40V and a maximum current rating of 1A. With dimensions of 22.00mm L x 22.00mm W and a height of 2.28mm, this component is suitable for integration into lighting systems across various industries, including architectural, retail, and hospitality lighting. The XLamp® CXA2011 is supplied in tubes.
Additional Information
Series: XLamp® CXA2011RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 22.00mm L x 22.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 40V |
| Height | 2.28mm |
| Current - Test | 270mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 90 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 970lm (900lm ~ 1040lm) |
Request a Quote
Clients Also Buy

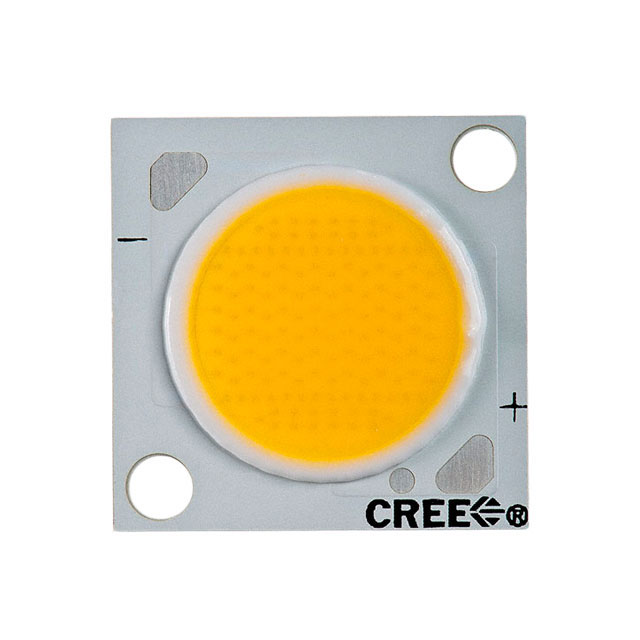

CXA2011-0000-000P00G00E7
