CXA1512-0000-000N00M227G
LED COB XLAMP WARM WHT SQU 2700KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

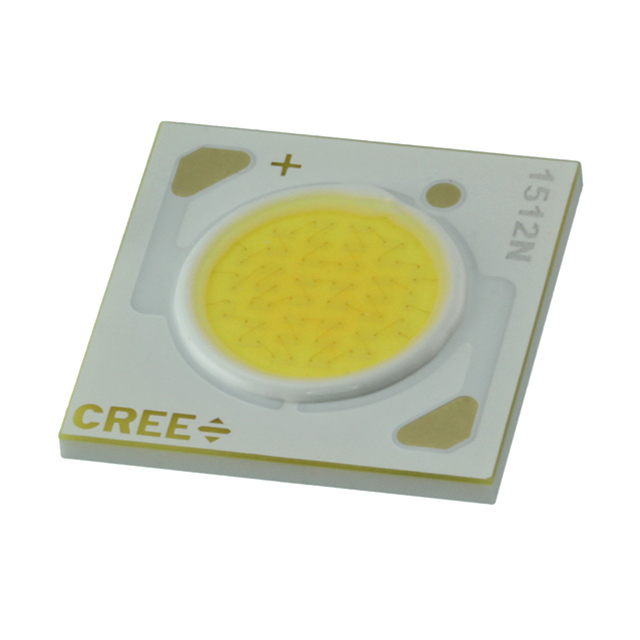

Cree LED XLamp® CXA1512 Series LED COB, part number CXA1512-0000-000N00M227G, offers a warm white illumination with a correlated color temperature of 2700K, specified within a 3-step MacAdam ellipse. This square-formatted Chip On Board (COB) features a 15.85mm x 15.85mm footprint with a height of 1.70mm. The Light Emitting Surface (LES) is 8.90mm in diameter. Operating at a test current of 350mA, it achieves a luminous flux of 1433 lumens and an efficacy of 114 lm/W at 85°C test temperature. The maximum forward current is 600mA, with a typical forward voltage of 36V. This component is suitable for applications requiring an 80 CRI and a wide 115° viewing angle. Industries utilizing this type of LED include general lighting, architectural lighting, and retail display lighting. The component is supplied in a tray.
Additional Information
Series: XLamp® CXA1512RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36V |
| Height | 1.70mm |
| Current - Test | 350mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 600mA |
| Lumens/Watt @ Current - Test | 114 lm/W |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 8.90mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1433lm (1380lm ~ 1485lm) |
