CXA1304-0000-000C00B430G
LED COB XLAMP WARM WHT SQ 3000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

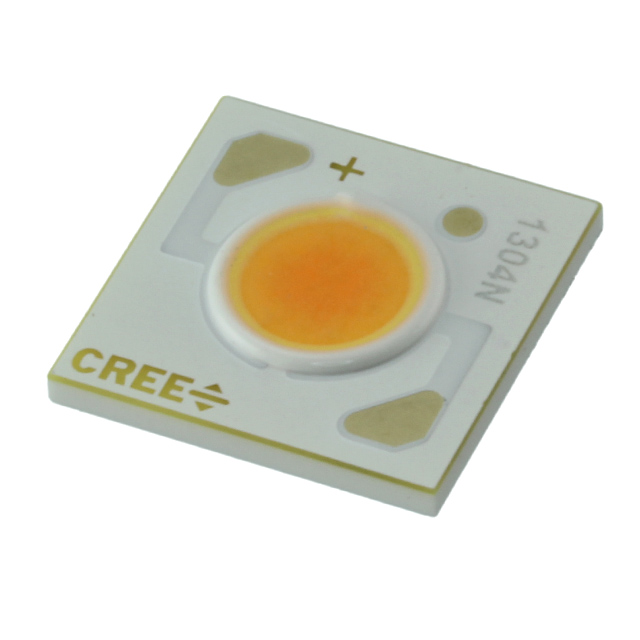

Cree LED XLamp® CXA1304 is a warm white Chip On Board (COB) LED designed for high-performance lighting applications. Featuring a 3000K CCT with a 3-step MacAdam ellipse for tight color consistency, this component delivers 425 lumens at a 400mA test current. The 6.00mm diameter Light Emitting Surface (LES) and 115° viewing angle, combined with an 80 CRI, ensure excellent color rendering. Operating at a maximum current of 1A, it achieves 118 lm/W efficacy at 85°C test temperature. The 13.35mm x 13.35mm footprint with a height of 1.70mm and a flat lens type facilitates integration into various luminaire designs. This component is commonly used in architectural lighting, retail displays, and general illumination. Packaged in trays.
Additional Information
Series: XLamp® CXA1304RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 13.35mm L x 13.35mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 9V |
| Height | 1.70mm |
| Current - Test | 400mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 118 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 6.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 425lm (410lm ~ 440lm) |
